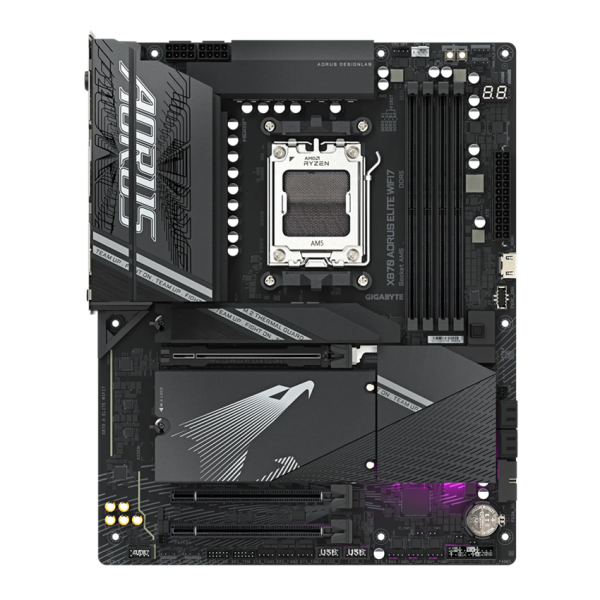

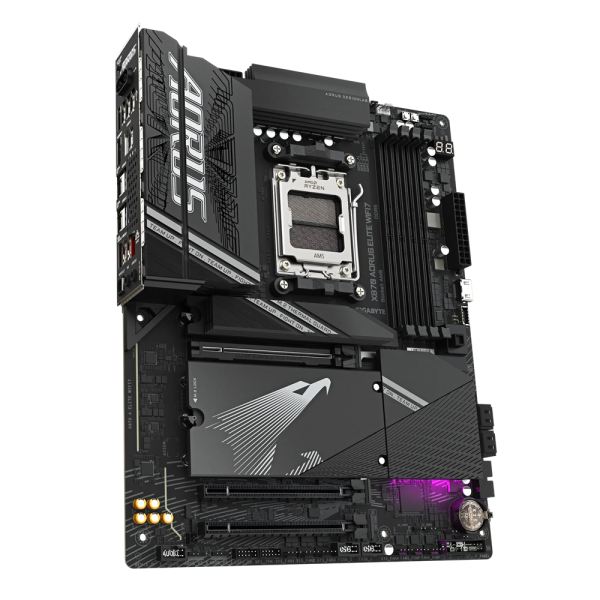

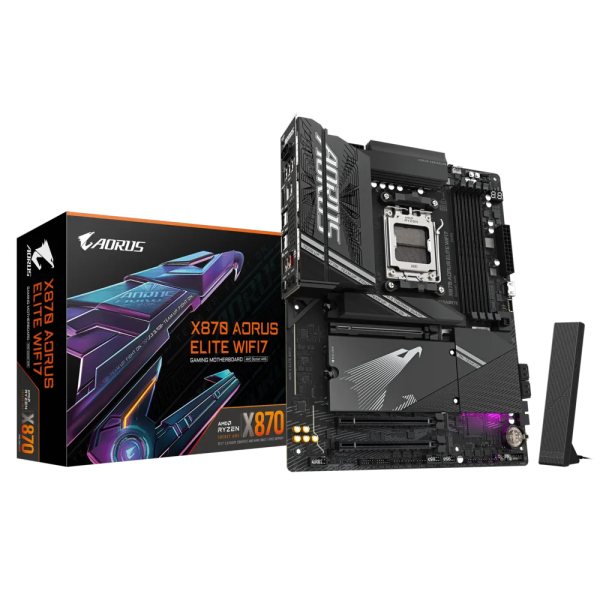

GB X870 AORUS ELITE WIFI7 /AM5

iTE® I/O Controller Chip

256 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Integrated Graphics Processor with AMD Radeon Graphics поддържа+ASMedia USB4 Controller; - 2 x USB4 USB Type-C портове, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * поддържа for DisplayPort 1.4 version and HDR.; Integrated Graphics Processor with AMD Radeon Graphics поддържа; - 1 x HDMI порт, supporting a maximum resolution of 4096x2160@60 Hz; * поддържа for HDMI 2.1 version, HDCP 2.3, and HDR.; ** поддържа native HDMI 2.1 TMDS compatible портове.; - 1 x front HDMI порт, supporting a maximum resolution of 1920x1080@30 Hz; * поддържа for HDMI 1.4 version; (Graphics specifications may vary depending on CPU поддържа.) поддържа for До quad-display at the same time

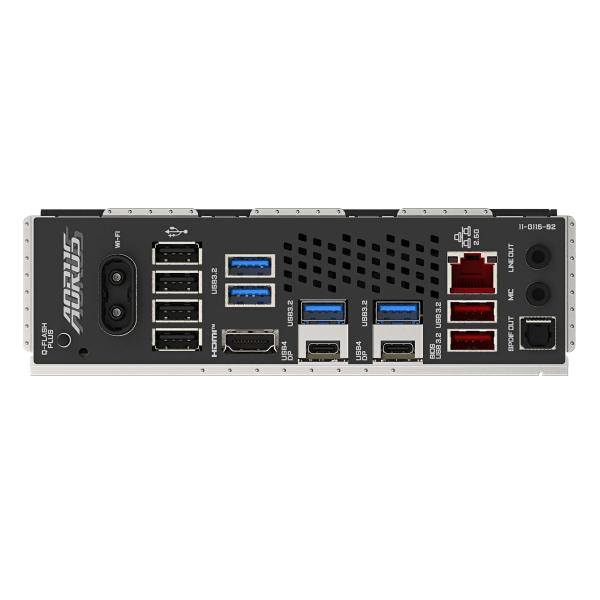

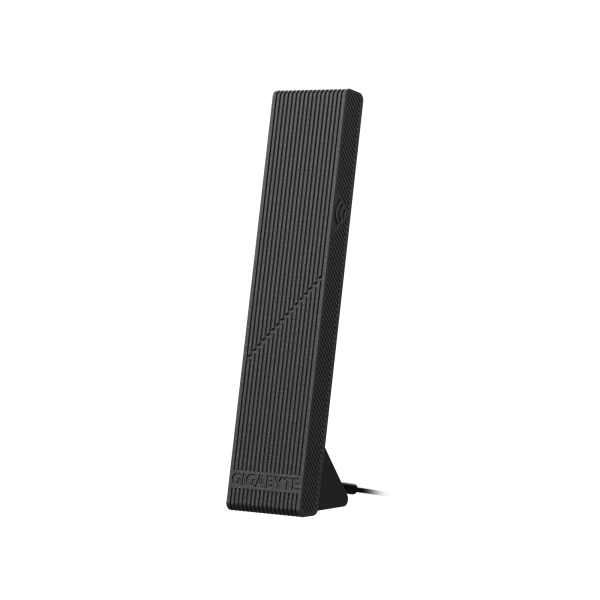

Internal I/O Connectors; -1 x 24-pin ATX main power connector; -2 x 8-pin ATX 12V power connectors; -1 x CPU fan header; -1 x CPU fan/water cooling pump header; -4 x system fan headers; -2 x system fan/water cooling pump headers; -3 x addressable RGB Gen2 LED strip headers; -1 x RGB LED strip header; -4 x M.2 Socket 3 connectors; -4 x SATA 6Gb/s connectors; -1 x front panel header; -1 x front panel audio header; -1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; -1 x USB 3.2 Gen 1 header; -2 x USB 2.0/1.1 headers; -1 x noise detection header; -1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); -1 x HDMI port (Note); -1 x power button; -1 x reset button; -2 x temperature sensor headers; -1 x reset jumper; -1 x Clear CMOS jumper; Back Panel Connectors; -1 x Q-Flash Plus button; -1 x HDMI port (Note); -2 x antenna connectors (2T2R); -2 x USB4® USB Type-C® ports (DisplayPort (Note)); -2 x USB 3.2 Gen 2 Type-A ports (red); -4 x USB 3.2 Gen 1 ports; -4 x USB 2.0/1.1 ports; -1 x RJ-45 po

1 x PCI Express x16 слот (PCIEX16), integrated in the CPU; -AMD Ryzen™ 9000/7000 Series Processors поддържа PCIe 5.0 x16 mode; * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 слот.; When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 слот operates at До x8 mode.; AMD Ryzen™ 8000 Series-Phoenix 1 Processors поддържа PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors поддържа PCIe 4.0 x4 mode; (The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD. If only one graphics card is до be installed, be sure до install it in the PCIEX16 слот.); Chipset; - 1 x PCI Express x16 слот, supporting PCIe 4.0 and running at x4 (PCIEX4); * The PCIEX4 слот shares bandwidth with the M2D_SB connector. The PCIEX4 слот becomes unavailable when a device is installed in the M2D_SB connector.; - 1 x PCI Express x16 слот, supporting PCIe 3.0 and running at x2 (PCIEX2)

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs; -AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; -AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; -AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs; -AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.; 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

\t ATX форм-фактор; 30.5 см x 24.4 см

AMD X870

DDR5
