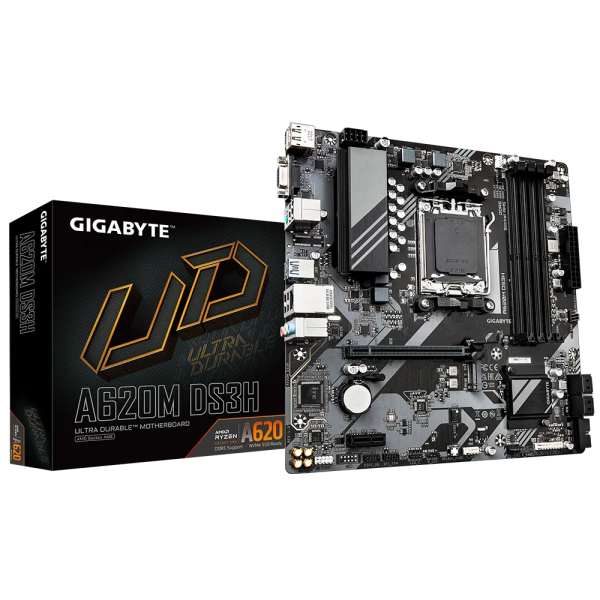

GB A620M DS3H / AM5

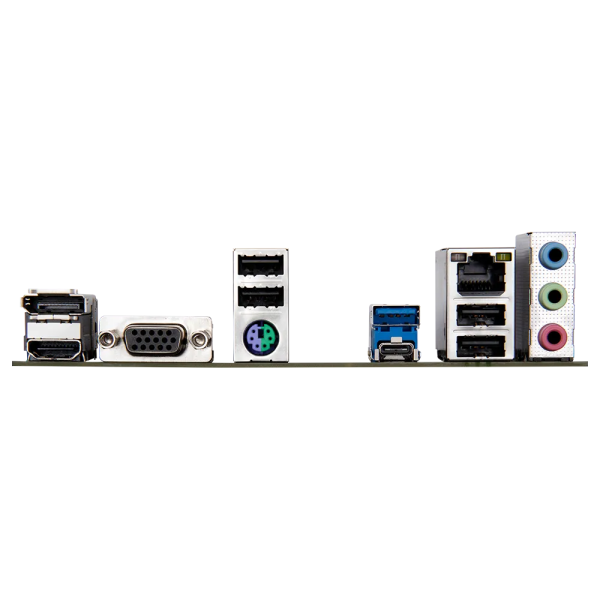

USB; HDMI; DisplayPort; PS/2

256 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * поддържа for DisplayPort 1.4 version.; - 1 x HDMI порт, supporting a maximum resolution of 4096x2160@60 Hz; * поддържа for HDMI 2.1 version and HDCP 2.3.; * поддържа for native HDMI 2.1 TMDS compatible портове.; - 1 x D-Sub порт, supporting a maximum resolution of 1920x1200@60 Hz; поддържа for До triple-display at the same time

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x Clear CMOS jumper

CPU: - 1 x PCI Express x16 слот, supporting PCIe 4.0 and running at x16; * For optimum performance, if only one PCI Express graphics card is до be installed, be sure до install it in the PCIEX16 слот.; Chipset: - 1 x PCI Express x1 слот, supporting PCIe 3.0 and running at x1

CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support); Chipset: - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Micro ATX форм-фактор; 24.4 см x 24.4 см

AMD A620

DDR5
