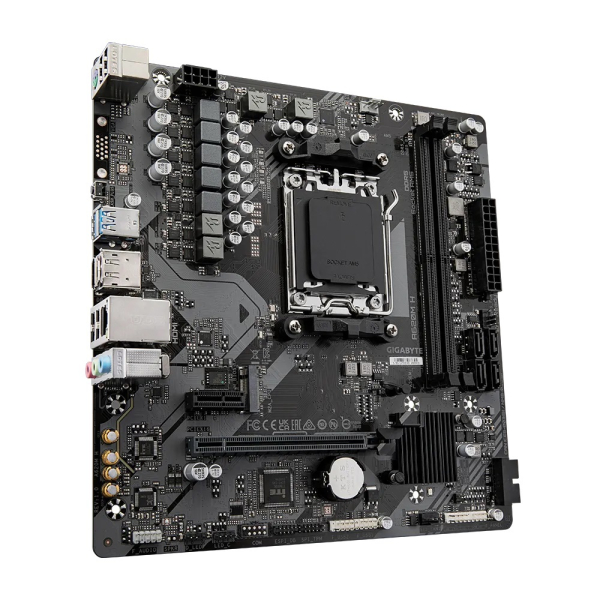

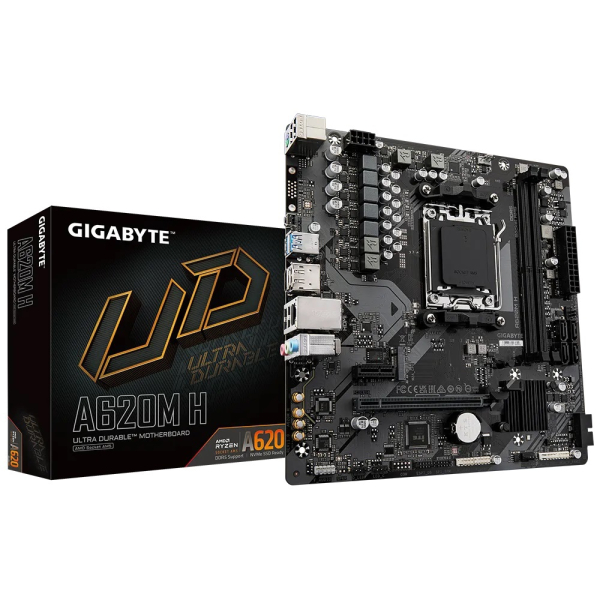

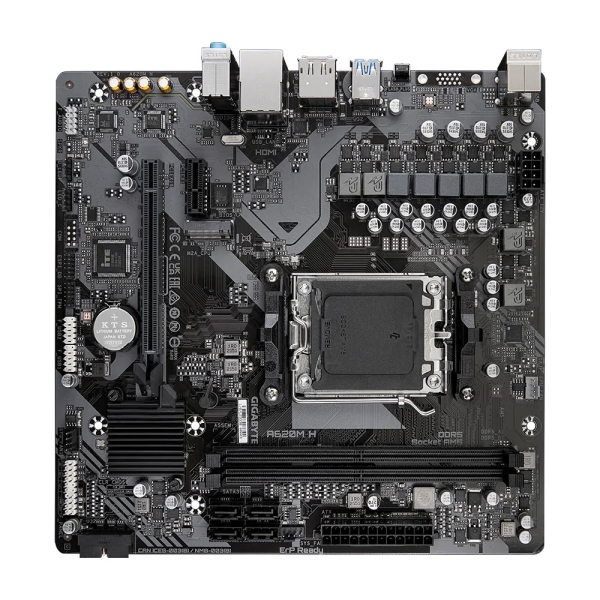

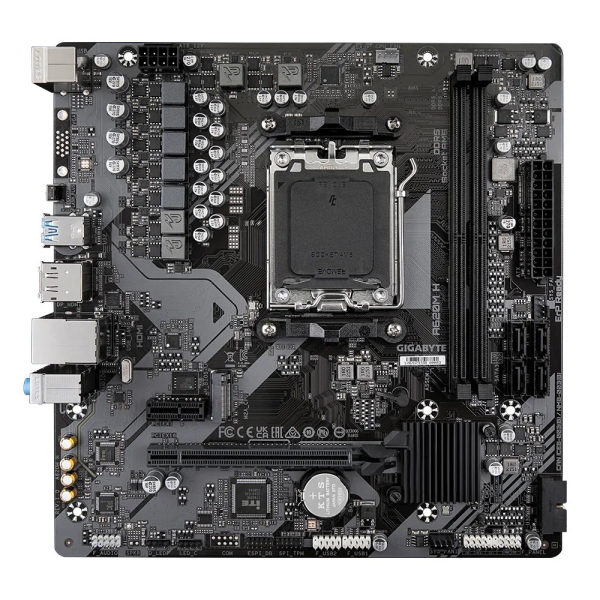

GB A620M H / AM5

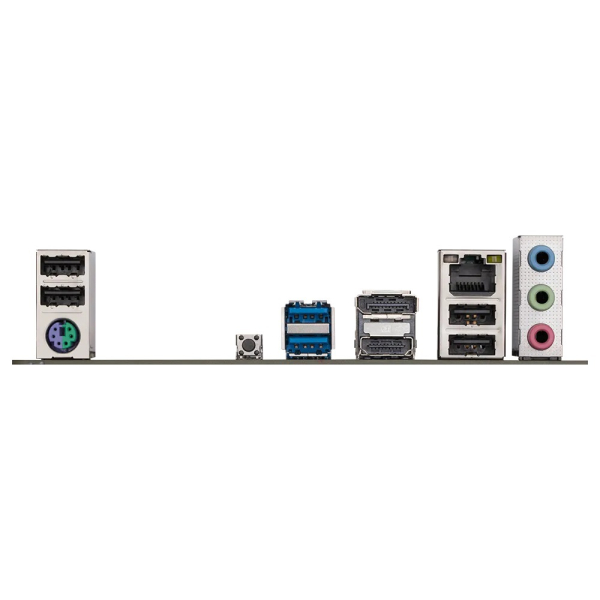

USB; HDMI; DisplayPort; PS/2

256 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * поддържа for DisplayPort 1.4 version.; 1 x HDMI порт, supporting a maximum resolution of 4096x2160@60 Hz; * поддържа for HDMI 2.1 version and HDCP 2.3.; ** поддържа for native HDMI 2.1 TMDS compatible портове.

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x Clear CMOS jumper

1 x PCI Express x16 слот, integrated in the CPU: AMD Ryzen™ 7000 Series Processors поддържа PCIe 4.0 x16 mode; AMD Ryzen™ 8000 Series-Phoenix 1 Processors поддържа PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors поддържа PCIe 4.0 x4 mode; * The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD.; Chipset: 1 x PCI Express x1 слот, supporting PCIe 3.0 and running at x1

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Micro ATX форм-фактор; 23.0 см x 22.5 см

AMD A620

DDR5
