ASUS TUF GAMING Z890-PRO WIFI
364.61€ (713.12лв)
В наличност
... →
Основни параметри
Интерфейси за съхранение
M.2: 4x; SATA 6Gb/s: 4x; RAID 0
Заден панел I/O

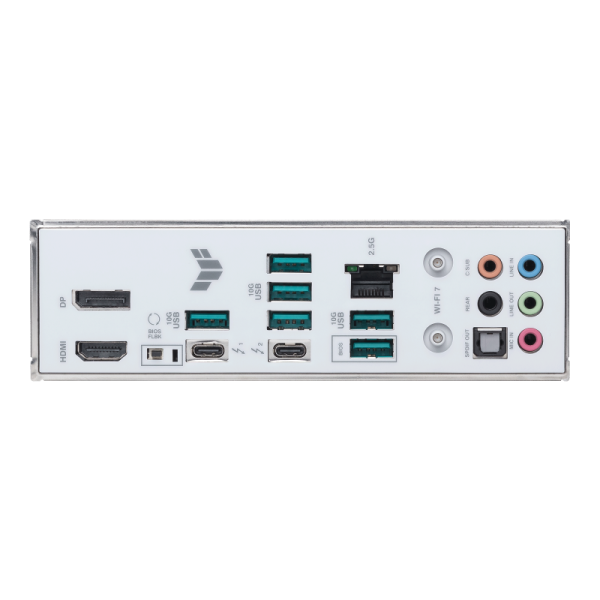

Flash BIOS; USB; Audio; Wi-Fi; HDMI; DisplayPort; LAN
Вътрешни конектори
Fan and Cooling Related; -1x 4-pin CPU Fan header; -1x 4-pin CPU OPT Fan header; -1x 4-pin AIO Pump header; -4x 4-pin Chassis Fan headers; Power Related; -1x 24-pin Main Power connector; -2x 8-pin +12V CPU Power connectors; Storage Related; -4x M.2 slots (Key M); -4x SATA 6Gb/s ports; USB; -1x USB 20Gbps connector (supports USB Type-C® ); -1x USB 5Gbps header supports 2 additional USB 5Gbps ports; -2x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; -3x Addressable Gen 2 headers; -1x Clear CMOS header; -1x Chassis Intrusion header; -1x COM Port header; -1x Front Panel Audio header (F_AUDIO); -1x 10-1 pin Front System Panel header; -1x Thermal Sensor header; -1x Thunderbolt™ (USB4®) header
Поддръжка на вградена графика
HDMI 2.1; DisplayPort 1.4
Характеристики
BIOS
256 Mb Flash ROM; UEFI AMI BIOS
Form Factor
ATX Form Factor 30.5 cm x 24.4 cm
LAN
1 x Intel® 2.5Gb Ethernet TUF LANGuard
Видео карта
1 x DisplayPort**;1 x HDMI port***;2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs****;* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;*** Supports 4K@60Hz as specified in HDMI 2.1.;**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.;***** In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time.;****** VGA resolution support depends on processors` or graphic cards` resolution.;******* While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Процесор, серия
Intel Z890 Chipset
Чипсет
Intel® Z890 Chipset
| Основни параметри | |
| Интерфейси за съхранение | M.2: 4x; SATA 6Gb/s: 4x; RAID 0 |
| Заден панел I/O | Flash BIOS; USB; Audio; Wi-Fi; HDMI; DisplayPort; LAN |
| Вътрешни конектори | Fan and Cooling Related; -1x 4-pin CPU Fan header; -1x 4-pin CPU OPT Fan header; -1x 4-pin AIO Pump header; -4x 4-pin Chassis Fan headers; Power Related; -1x 24-pin Main Power connector; -2x 8-pin +12V CPU Power connectors; Storage Related; -4x M.2 slots (Key M); -4x SATA 6Gb/s ports; USB; -1x USB 20Gbps connector (supports USB Type-C® ); -1x USB 5Gbps header supports 2 additional USB 5Gbps ports; -2x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; -3x Addressable Gen 2 headers; -1x Clear CMOS header; -1x Chassis Intrusion header; -1x COM Port header; -1x Front Panel Audio header (F_AUDIO); -1x 10-1 pin Front System Panel header; -1x Thermal Sensor header; -1x Thunderbolt™ (USB4®) header |
| Поддръжка на вградена графика | HDMI 2.1; DisplayPort 1.4 |
| Характеристики | |
| BIOS | 256 Mb Flash ROM; UEFI AMI BIOS |
| Form Factor | ATX Form Factor 30.5 cm x 24.4 cm |
| LAN | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Видео карта | 1 x DisplayPort**;1 x HDMI port***;2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs****;* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;*** Supports 4K@60Hz as specified in HDMI 2.1.;**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.;***** In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time.;****** VGA resolution support depends on processors` or graphic cards` resolution.;******* While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Процесор, серия | Intel Z890 Chipset |
| Чипсет | Intel® Z890 Chipset |
| Памет, тип | DDR5 |
| Съвместими операционни системи | Windows 11 (22H2 & later) |
| Безжична мрежа | Wi-Fi 7; 802.11be; 2x2 |
| Bluetooth | Да |
| Аудио | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection; Multi-streaming; Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit; Due to limitations in HDA bandwidth; 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Софтуер | Windows 11 |
| Гаранция | 36 месеца |
| Разширителни слотове | PCIe 5.0 x16; PCIe 4.0 x16; PCIe 4.0 x4; PCIe 4.0 x1 |
| URL на производителя | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z890-pro-wifi |
| Bluetooth версия | 5.4 |
