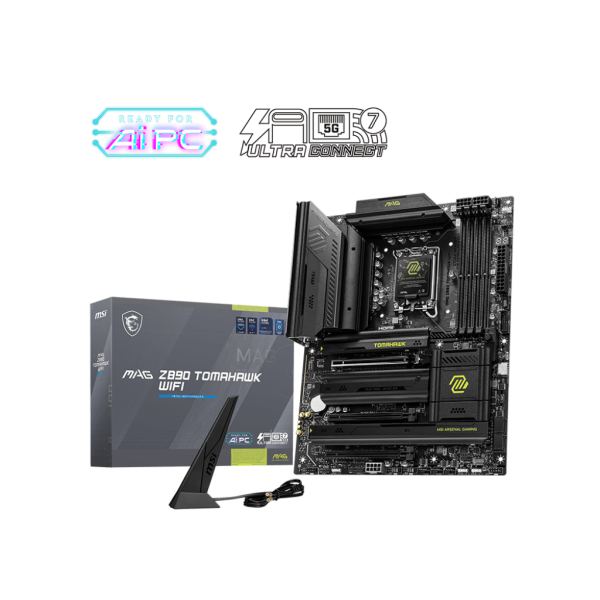

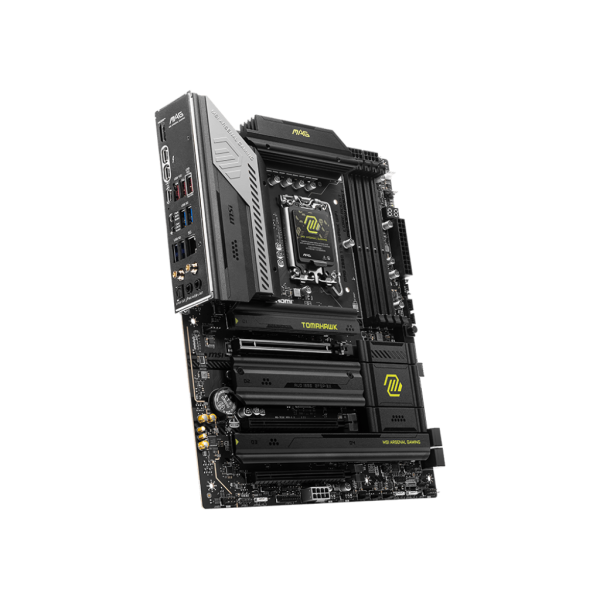

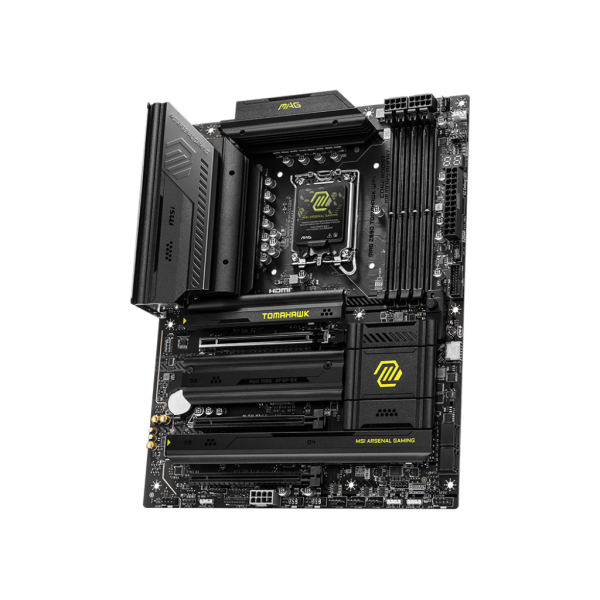

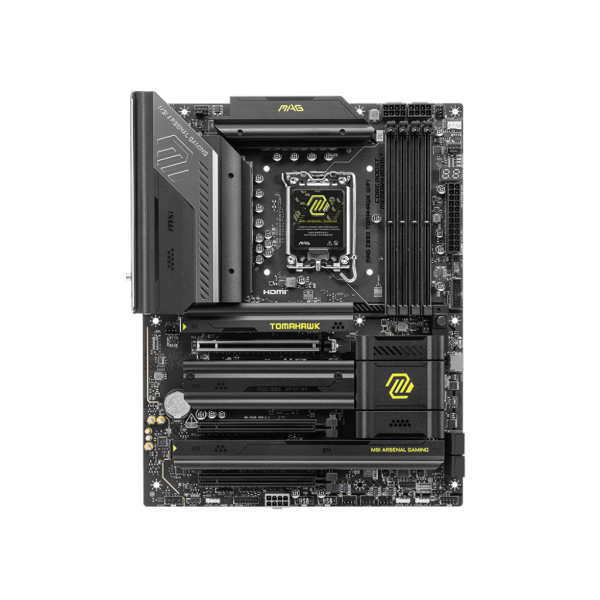

MSI MAG Z890 TOMAHAWK WIFI

USB

Intel® Killer™ E5000 5Gbps LAN

1x HDMI; поддържа HDMI 2.1 with FRL, maximum resolution of 4K 120 Hz; 2x Type-C DisplayPort; Thunderbolt 4 портове, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120 Hz / 8K@60 Hz

1x Thunderbolt5 card connector(JTBT5, support RTD3); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports

3x PCI-E x16 слот; PCI_E1 Gen PCIe 5.0 поддържа До x16 (From CPU); PCI_E2 Gen PCIe 4.0 поддържа До x4 (From Chipset); PCI_E3 Gen PCIe 4.0 поддържа До x4 (From Chipset)

4x M.2; -M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; -M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; -M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; -M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

ATX 243.84mmx304.8 мм

INTEL Z890

DDR5

Wi-Fi 7
