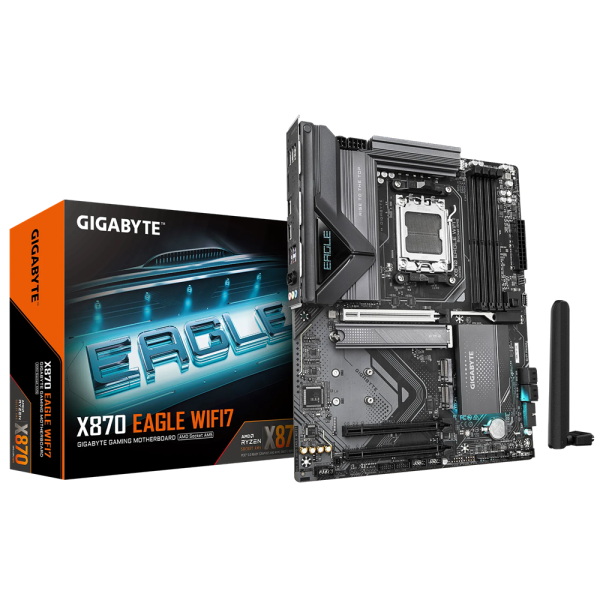

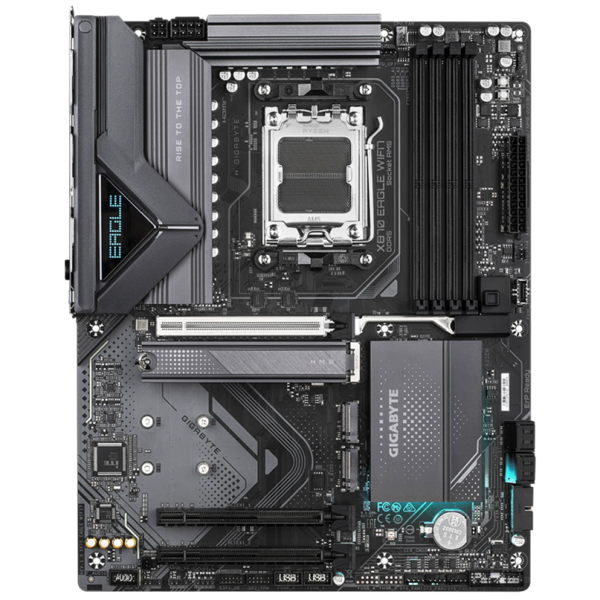

GB X870 EAGLE WIFI7 /AM5
240.06€ (469.52лв)
В наличност
GB X870 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 3xPCIEx16 WiFi... →
Основни параметри
Интерфейси за съхранение
M.2: 1x; SATA 6Gb/s: 4x; RAID 0/1/5/10

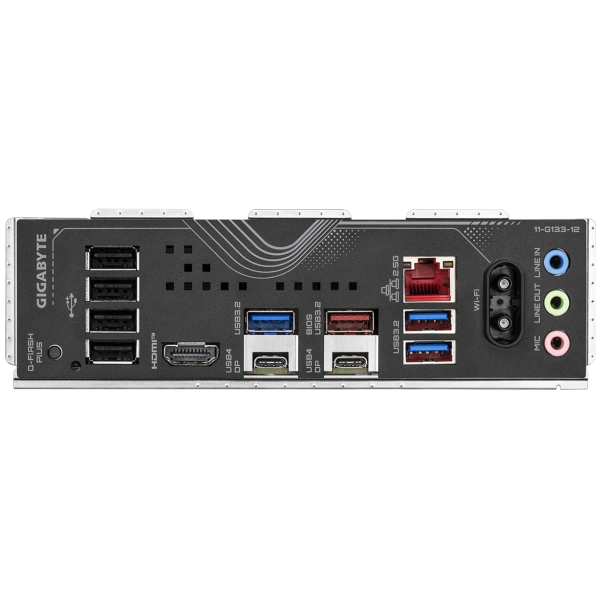

Заден панел I/O
USB
Вътрешни конектори
iTE® I/O Controller Chip; 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 1x CPU fan header; 1x CPU fan/water cooling pump header; 4x system fan headers; 3x addressable RGB Gen2 LED strip headers; 1x RGB LED strip header; 4x SATA 6Gb/s connectors; 3x M.2 Socket 3 connectors; 1x front panel header; 1x front panel audio header; 1x USB Type-C® header; with USB 3.2 Gen 2x 2 support; 1x USB 3.2 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1x power button; 1x reset button; 1x reset jumper; 1x Clear CMOS jumper; Back Panel Connectors: 1x Q-Flash Plus button; 2x antenna connectors (2T2R); 1x HDMI port*; 2x USB4® USB Type-C® ports (DisplayPort*); 1x USB 3.2 Gen 2 Type-A port (red); 3x USB 3.2 Gen 1 ports; 4x USB 2.0/1.1 ports; 1x RJ-45 port; 3x audio jacks; Actual support may vary by CPU.
Поддръжка на вградена графика
AMD Radeon™ Graphics; HDMI 2.1; DisplayPort 1.4; max 3840x2160@240Hz; max 4096x2160@60Hz
Характеристики
BIOS
256 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Видео карта
Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller;- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support native HDMI 2.1 TMDS compatible ports.;(Graphics specifications may vary depending on CPU support.)
Поддържани процесори
AMD Ryzen 9000 Series; AMD Ryzen 8000 Series; AMD Ryzen 7000 Series; Socket AM5
Процесор, серия
AMD X870
GB X870 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 3xPCIEx16 WiFi
| Основни параметри | |
| Интерфейси за съхранение | M.2: 1x; SATA 6Gb/s: 4x; RAID 0/1/5/10 |
| Заден панел I/O | USB |
| Вътрешни конектори | iTE® I/O Controller Chip; 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 1x CPU fan header; 1x CPU fan/water cooling pump header; 4x system fan headers; 3x addressable RGB Gen2 LED strip headers; 1x RGB LED strip header; 4x SATA 6Gb/s connectors; 3x M.2 Socket 3 connectors; 1x front panel header; 1x front panel audio header; 1x USB Type-C® header; with USB 3.2 Gen 2x 2 support; 1x USB 3.2 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1x power button; 1x reset button; 1x reset jumper; 1x Clear CMOS jumper; Back Panel Connectors: 1x Q-Flash Plus button; 2x antenna connectors (2T2R); 1x HDMI port*; 2x USB4® USB Type-C® ports (DisplayPort*); 1x USB 3.2 Gen 2 Type-A port (red); 3x USB 3.2 Gen 1 ports; 4x USB 2.0/1.1 ports; 1x RJ-45 port; 3x audio jacks; Actual support may vary by CPU. |
| Поддръжка на вградена графика | AMD Radeon™ Graphics; HDMI 2.1; DisplayPort 1.4; max 3840x2160@240Hz; max 4096x2160@60Hz |
| Характеристики | |
| BIOS | 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Видео карта | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller;- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support native HDMI 2.1 TMDS compatible ports.;(Graphics specifications may vary depending on CPU support.) |
| Поддържани процесори | AMD Ryzen 9000 Series; AMD Ryzen 8000 Series; AMD Ryzen 7000 Series; Socket AM5 |
| Процесор, серия | AMD X870 |
| Чипсет | AMD X870 |
| Памет, тип | DDR5 |
| Съвместими операционни системи | Windows 11 64-bit |
| Безжична мрежа | Wi-Fi 7; 802.11a |
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio; access the audio software for audio settings |
| Софтуер | Windows 11 |
| Гаранция | 36 месеца |
| Разширителни слотове | 1x PCIe x16; 2x PCIe x16; PCIe 5.0 x16; PCIe 4.0 x8; PCIe 4.0 x4 |
| URL на производителя | https://www.gigabyte.com/Motherboard/X870-EAGLE-WIFI7#kf |
