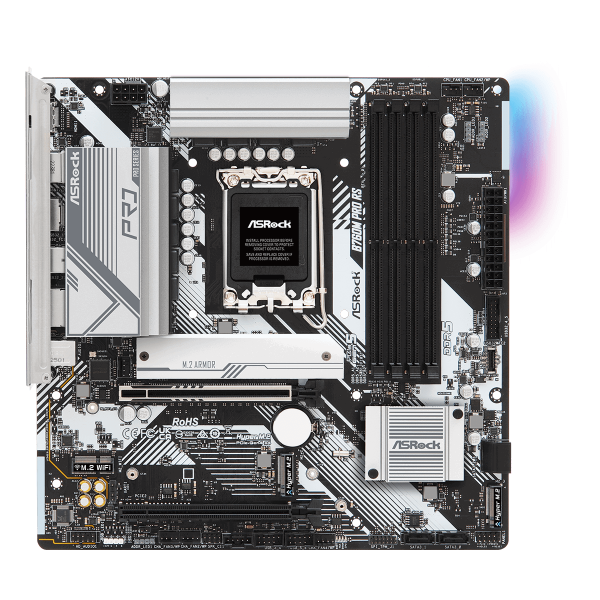

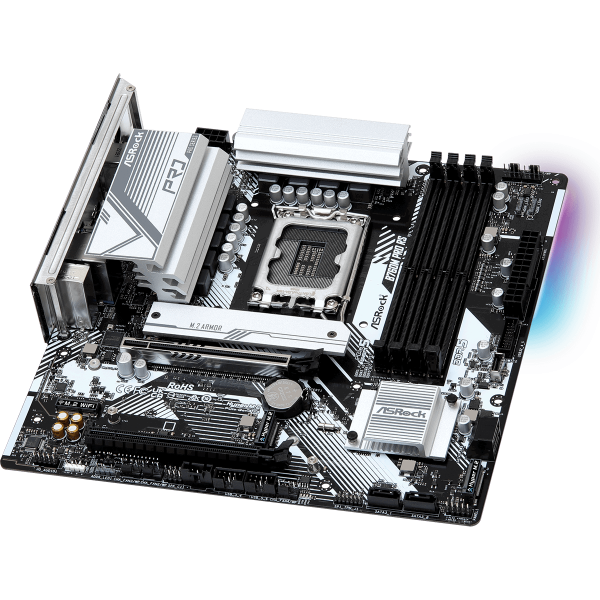

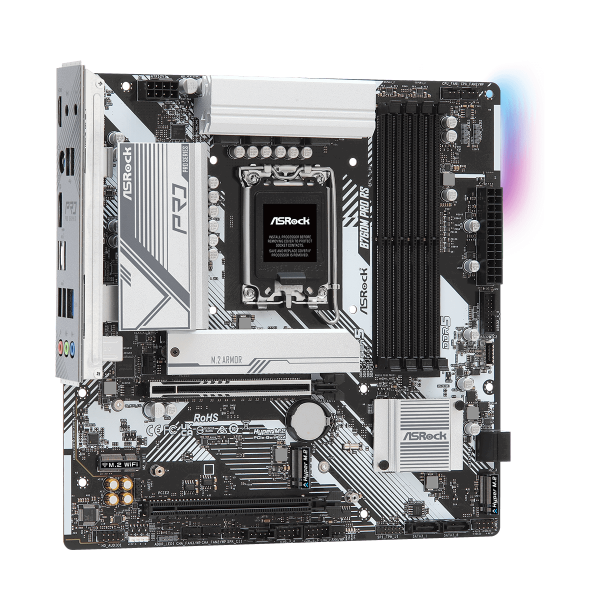

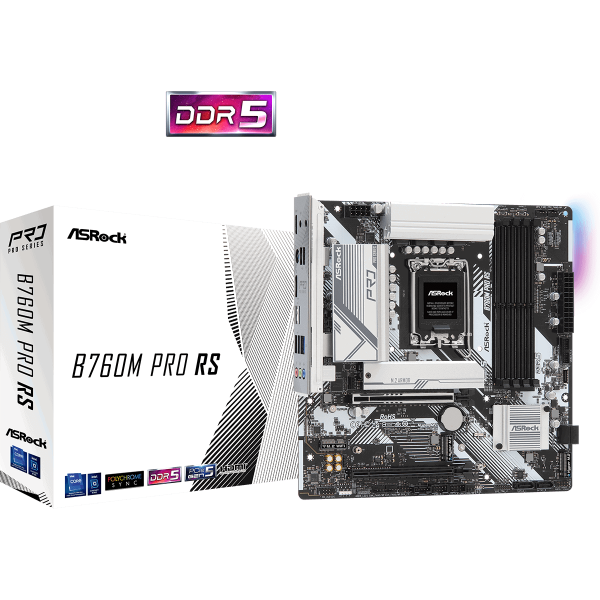

ASROCK B760M PRO RS

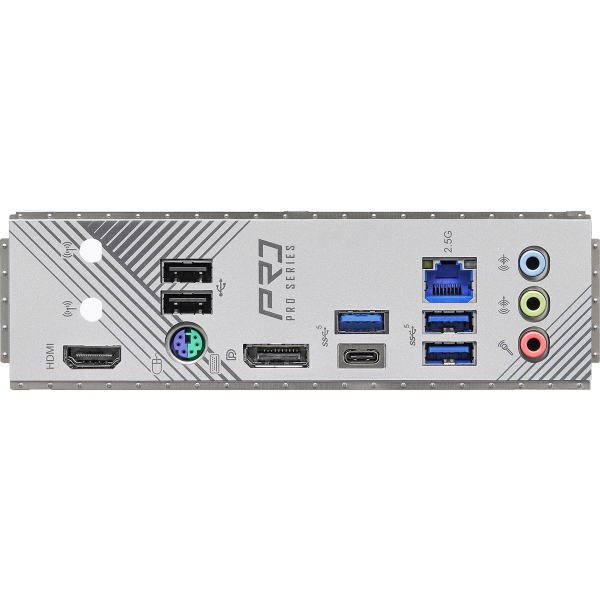

USB; HDMI; DisplayPort; LAN; PS/2

- 128Mb AMI UEFI Legal BIOS with GUI support

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control

- Intel Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, поддържа HDCP 2.3 and max. resolution До 4K 60 Hz; - 1 x DisplayPort 1.4 with DSC (compressed), поддържа HDCP 2.3 and max. resolution До 8K 60 Hz / 5K 120 Hz

- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header

CPU: - 1 x PCIe 5.0 x16 слот (PCIE1), поддържа x16 mode*; Chipset: - 1 x PCIe 3.0 x16 слот (PCIE2), поддържа x4 mode*; - 1 x M.2 Socket (Key E), поддържа type 2230 WiFi/BT PCIe WiFi модул and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - поддържа AMD CrossFire™

CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

- Micro ATX форм-фактор: 9.6-in x 9.6-in, 24.4 см x 24.4 см

- Intel® B760

DDR5
