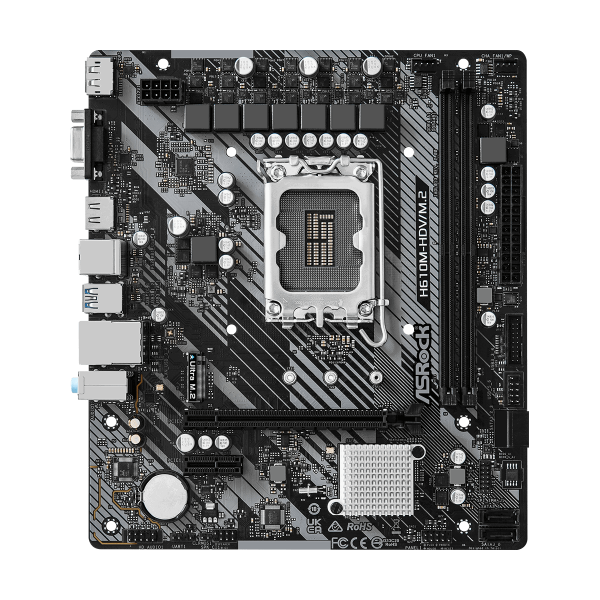

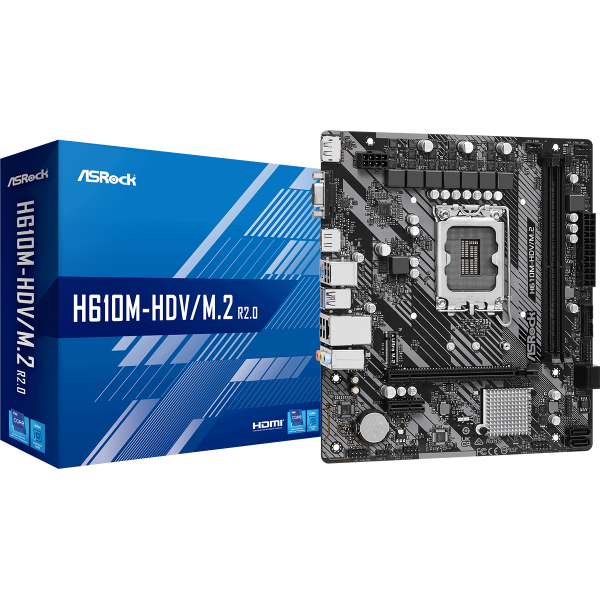

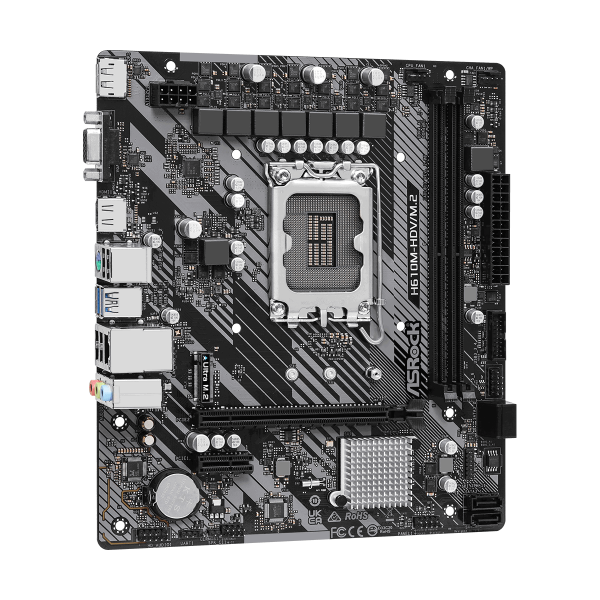

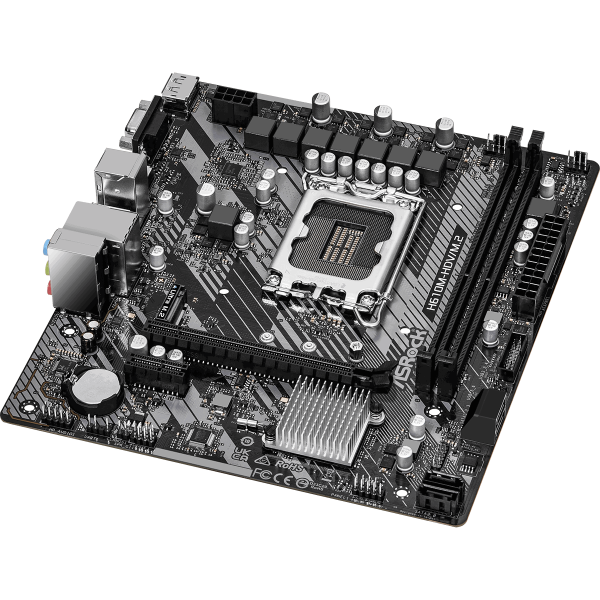

ASROCK H610M-HDV/M.2 R2.0/DDR4
66.71€ (130.47лв)
В наличност
ASROCK H610 2xDDR4 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1... →
Основни параметри
Интерфейси за съхранение
Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
Заден панел I/O

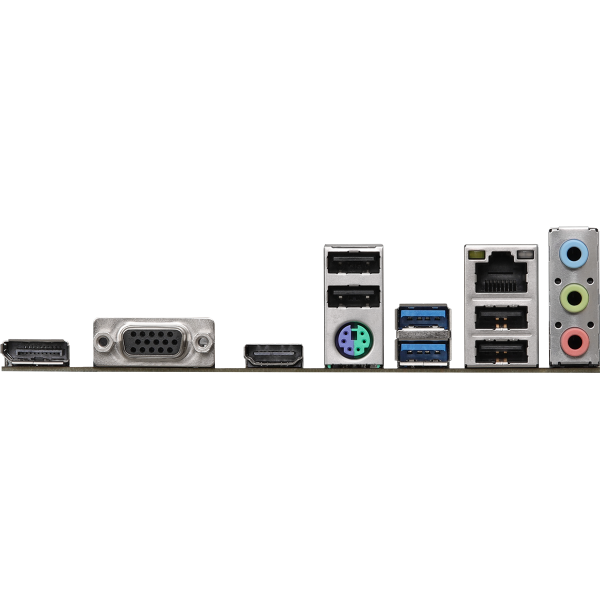

USB; Audio; HDMI; DisplayPort; LAN; PS/2
Вътрешни конектори
1x SPI TPM Header; 1x Chassis Intrusion and Speaker Header; 1x CPU Fan Connector (4-pin)*; 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*; 1x 24 pin ATX Power Connector; 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Поддръжка на вградена графика
HDMI 2.1; DisplayPort 1.4; max 1920x1200@60Hz
Характеристики
BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; PU Core/Cache; CPU Core/Cache Load-Line; CPU GT; CPU GT Load-Line; DRAM; +0.82V PCH; +1.05V PCH; VCCIN AUX; +1.8V PROC; +1.05V PROC Voltage Multi-adjustment
Form Factor
Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm; Solid Capacitor design
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s; 1 x Realtek RTL8111H; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE
Видео карта
Intel Xe Graphics Architecture (Gen 12); Three graphics output options: D-Sub, HDMI and DisplayPort 1.4; Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Процесор, серия
- Intel H610
Чипсет
- Intel® H610
ASROCK H610 2xDDR4 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
| Основни параметри | |
| Интерфейси за съхранение | Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors |
| Заден панел I/O | USB; Audio; HDMI; DisplayPort; LAN; PS/2 |
| Вътрешни конектори | 1x SPI TPM Header; 1x Chassis Intrusion and Speaker Header; 1x CPU Fan Connector (4-pin)*; 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*; 1x 24 pin ATX Power Connector; 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Поддръжка на вградена графика | HDMI 2.1; DisplayPort 1.4; max 1920x1200@60Hz |
| Характеристики | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; PU Core/Cache; CPU Core/Cache Load-Line; CPU GT; CPU GT Load-Line; DRAM; +0.82V PCH; +1.05V PCH; VCCIN AUX; +1.8V PROC; +1.05V PROC Voltage Multi-adjustment |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm; Solid Capacitor design |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s; 1 x Realtek RTL8111H; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE |
| Видео карта | Intel Xe Graphics Architecture (Gen 12); Three graphics output options: D-Sub, HDMI and DisplayPort 1.4; Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Процесор, серия | - Intel H610 |
| Чипсет | - Intel® H610 |
| Памет, тип | DDR4 |
| Съвместими операционни системи | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Аудио | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection |
| Софтуер | - Microsoft Windows 10 64-bit / 11 64-bit |
| Гаранция | 36 месеца |
| Разширителни слотове | PCIe 4.0 x16; PCIe 3.0 x1 |
| URL на производителя | https://www.asrock.com/mb/Intel/H610M-HDVM.2%20R2.0/index.asp#Specification |
