ASROCK B850 PRO RS /AM5
157.21€ (307.48лв)
В наличност
ASROCK B850 4xDDR5 4xSATA3 RAID HDMI 4xM2 GLAN 1xPCIEx16... →
Основни параметри
USB портове
USB 10Gbps Type-C: 1x; USB 5Gbps Type-C: 1x; USB 5Gbps Type-A: 8x; USB 20Gbps Type-C: 1x; USB 2.0: 10x

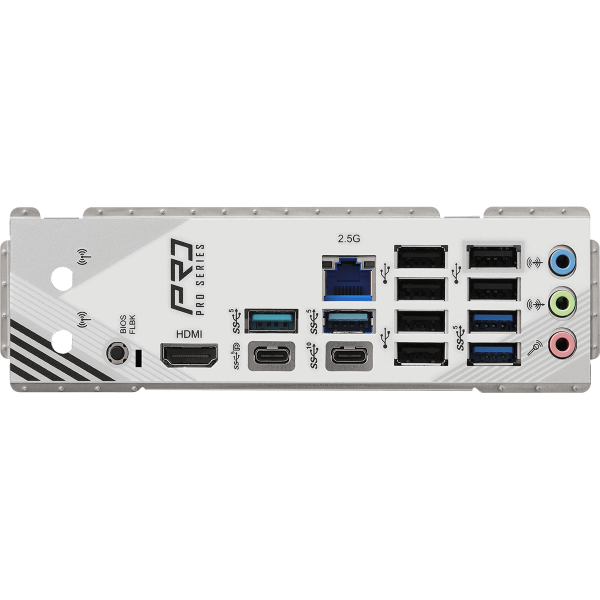

Заден панел I/O
Flash BIOS; USB; HDMI; DisplayPort; LAN
Характеристики
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control
Видео карта
Integrated AMD RDNA graphics (Actual поддържа may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8 г Compatible, поддържа HDR, HDCP 2.3 and max. resolution До 4K 120 Hz; - 1 x USB 3.2 Gen1 Type-C, поддържа DP 1.4 HBR3 and max. resolution До 4K 60 Hz (DP-alt mode поддържа DP1.4a)
Конектори
1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control); 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Слотове за разширение
CPU:; - 1 x PCIe 5.0 x16 слот (PCIE1), поддържа x16 mode*; Chipset:; - 1 x PCIe 4.0 x16 слот (PCIE2), поддържа x4 mode*; - 1 x M.2 Socket (Key E), поддържа type 2230 WiFi/BT PCIe WiFi модул; - 15? Gold Contact in VGA PCIe слот (PCIE1)
Съхранение
CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*; - 2 x SATA3 6.0 Gb/s Connectors; ASMedia ASM1061:; - 2 x SATA3 6.0 Gb/s Connectors; Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Форм-фактор
ATX форм-фактор: 12.0-in x 9.6-in, 30.5 см x 24.4 см; 8 Layer PCB
Чипсет
AMD B850
ASROCK B850 4xDDR5 4xSATA3 RAID HDMI 4xM2 GLAN 1xPCIEx16
| Основни параметри | |
| USB портове | USB 10Gbps Type-C: 1x; USB 5Gbps Type-C: 1x; USB 5Gbps Type-A: 8x; USB 20Gbps Type-C: 1x; USB 2.0: 10x |
| Заден панел I/O | Flash BIOS; USB; HDMI; DisplayPort; LAN |
| Характеристики | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control |
| Видео карта | Integrated AMD RDNA graphics (Actual поддържа may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8 г Compatible, поддържа HDR, HDCP 2.3 and max. resolution До 4K 120 Hz; - 1 x USB 3.2 Gen1 Type-C, поддържа DP 1.4 HBR3 and max. resolution До 4K 60 Hz (DP-alt mode поддържа DP1.4a) |
| Конектори | 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control); 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Слотове за разширение | CPU:; - 1 x PCIe 5.0 x16 слот (PCIE1), поддържа x16 mode*; Chipset:; - 1 x PCIe 4.0 x16 слот (PCIE2), поддържа x4 mode*; - 1 x M.2 Socket (Key E), поддържа type 2230 WiFi/BT PCIe WiFi модул; - 15? Gold Contact in VGA PCIe слот (PCIE1) |
| Съхранение | CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*; - 2 x SATA3 6.0 Gb/s Connectors; ASMedia ASM1061:; - 2 x SATA3 6.0 Gb/s Connectors; Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Форм-фактор | ATX форм-фактор: 12.0-in x 9.6-in, 30.5 см x 24.4 см; 8 Layer PCB |
| Чипсет | AMD B850 |
| Памет, тип | DDR5 |
| Аудио | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio |
| Софтуер | Microsoft Windows® 10 64-bit / 11 64-bit; Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC*; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash |
| URL на производителя | https://www.asrock.com/MB/AMD/B850%20Pro%20RS/index.asp |
