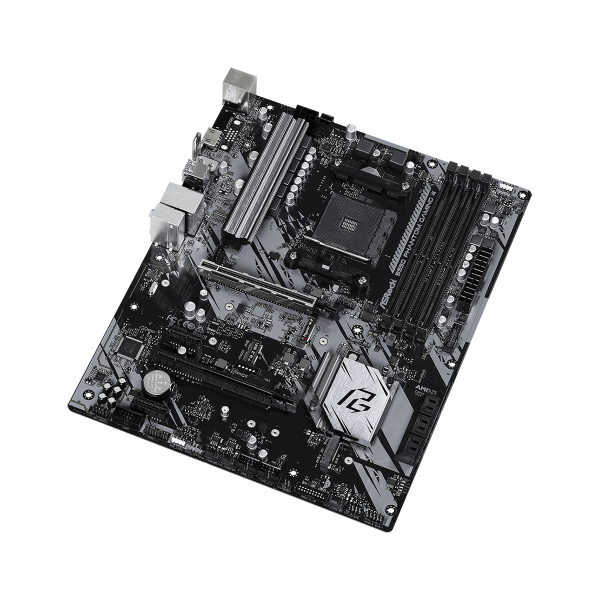

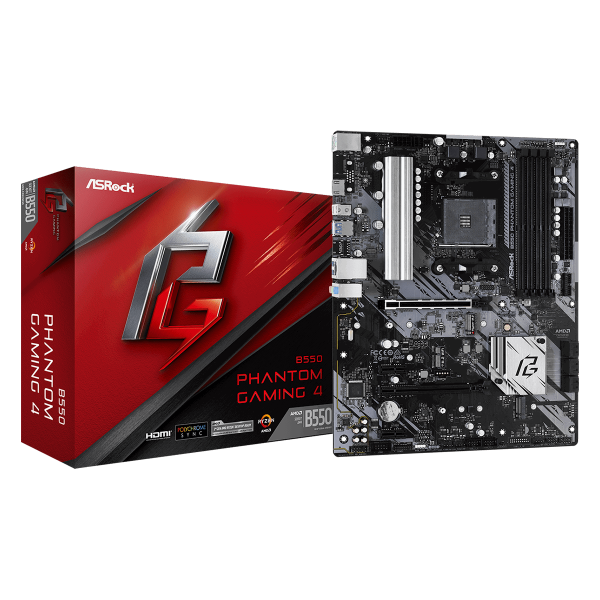

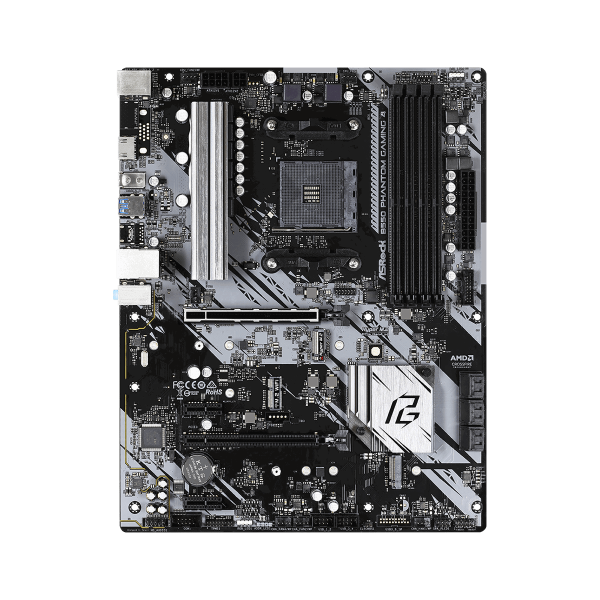

ASROCK B550 PHANTOM GAMING 4

M.2: 1x; RAID 0/1/10

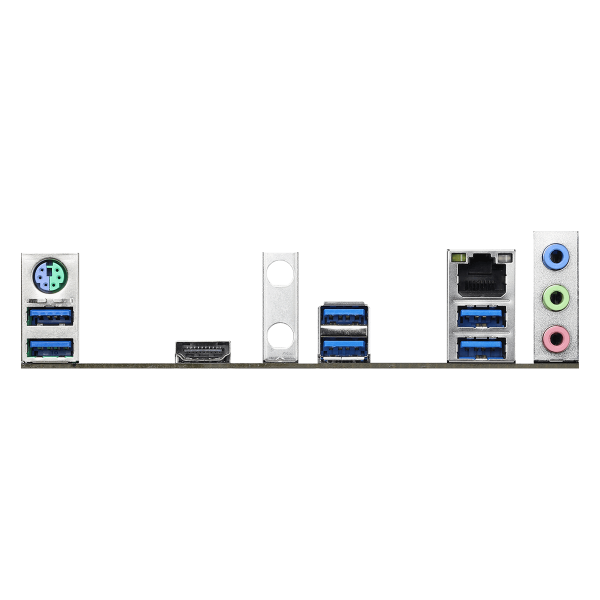

USB; Audio; HDMI; LAN; PS/2

- 1x COM Port Header; - 1x SPI TPM Header; - 1x Power LED and Speaker Header; - 2x RGB LED Headers*; - 2x Addressable LED Headers*; - 1x CPU Fan Connector (4-pin)*; - 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*; - 1x 24 pin ATX Power Connector; - 1x 8 pin 12V Power Connector; - 1x 4 pin 12V Power Connector; - 1x Front Panel Audio Connector; - 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

HDMI 2.1

- 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU; CPU VDDCR_SOC; DRAM; VPPM; 1.05V_PROM_S5; 2.5V_PROM; +1.8VSB; VDDP Voltage Multi-adjustment

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - Solid Capacitor design; - 2oz Copper PCB

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft PlayReady

- AMD B550

- AMD B550
