ASUS ROG STRIX Z890-E GAM WIFI
551.62€
В наличност
ASUS Z890 4xDDR5 4xSATA3 RAID HDMI DP 7xM2 GLAN 2xPCIEx16 WiFi... →
Характеристики
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Connectors
Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;7 x M.2 slots (Key M) ;4 x SATA 6Gb/s ports;USB ;1 x USB 20Gbps connector (supports USB Type-C®) ;2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;3 x USB 2.0 headers support additional 6 USB 2.0 ports ;Miscellaneous;3 x Addressable Gen2 headers;1 x Chassis Intrusion header;1 x CPU Over Voltage jumper;1 x FlexKey button ;1 x Front Panel Audio header (F_AUDIO);1 x Start button;1 x 10-1 pin System Panel header;1 x Alteration PCIe mode switch;1 x Thermal Sensor header;1 x Thunderbolt™ (USB4®) header
Expansion Slots
Intel® Core™ Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
Form Factor
ATX Form Factor;30.5 cm x 24.4 cm

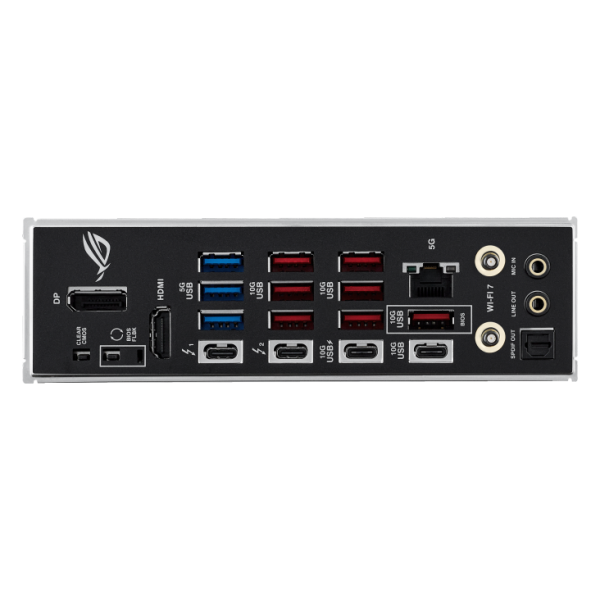

Rear panel I/O
2 x Thunderbolt™ 4 (2 x USB Type-C®);9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge);3 x USB 5Gbps ports (3 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Wi-Fi Module;1 x Realtek 5Gb Ethernet;2 x Gold-plated audio jacks ;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button;1 x Clear CMOS button
Storage
Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors(Series 2);M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® Z890 Chipset;M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports
Vendor_url
https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-e-gaming-wifi/
Тип памет
4 x DIMM slots, max. 256GB, DDR5;Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM Flex;NitroPath DRAM Technology ;DIMM Fit;ASUS Enhanced Memory Profile III (AEMP III)
Чипсет
Intel® Z890 Chipset
Видео карта, модел
1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
ASUS Z890 4xDDR5 4xSATA3 RAID HDMI DP 7xM2 GLAN 2xPCIEx16 WiFi
| Характеристики | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Connectors | Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;7 x M.2 slots (Key M) ;4 x SATA 6Gb/s ports;USB ;1 x USB 20Gbps connector (supports USB Type-C®) ;2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;3 x USB 2.0 headers support additional 6 USB 2.0 ports ;Miscellaneous;3 x Addressable Gen2 headers;1 x Chassis Intrusion header;1 x CPU Over Voltage jumper;1 x FlexKey button ;1 x Front Panel Audio header (F_AUDIO);1 x Start button;1 x 10-1 pin System Panel header;1 x Alteration PCIe mode switch;1 x Thermal Sensor header;1 x Thunderbolt™ (USB4®) header |
| Expansion Slots | Intel® Core™ Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Form Factor | ATX Form Factor;30.5 cm x 24.4 cm |
| Rear panel I/O | 2 x Thunderbolt™ 4 (2 x USB Type-C®);9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge);3 x USB 5Gbps ports (3 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Wi-Fi Module;1 x Realtek 5Gb Ethernet;2 x Gold-plated audio jacks ;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button;1 x Clear CMOS button |
| Storage | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors(Series 2);M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® Z890 Chipset;M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports |
| Vendor_url | https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-e-gaming-wifi/ |
| Тип памет | 4 x DIMM slots, max. 256GB, DDR5;Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM Flex;NitroPath DRAM Technology ;DIMM Fit;ASUS Enhanced Memory Profile III (AEMP III) |
| Чипсет | Intel® Z890 Chipset |
| Видео карта, модел | 1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs |
| Операционна система | Windows® 11 (22H2 & later) |
| Мрежа | 1 x Realtek 5Gb Ethernet;ASUS LANGuard |
| Безжична мрежа | Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4 |
| Bluetooth | 5.4 |
| USB | Rear USB (Total 14 ports);2 x Thunderbolt™ 4 (2 x USB Type-C®);9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**;3 x USB 5Gbps ports (3 x Type-A);Front USB (Total 11 ports);1 x USB 20Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Аудио | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features;- Audio Shielding;- Savitech SV3H712 AMP ;- Gold-plated audio jacks;- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover |
| Гаранция | 36 Months |
