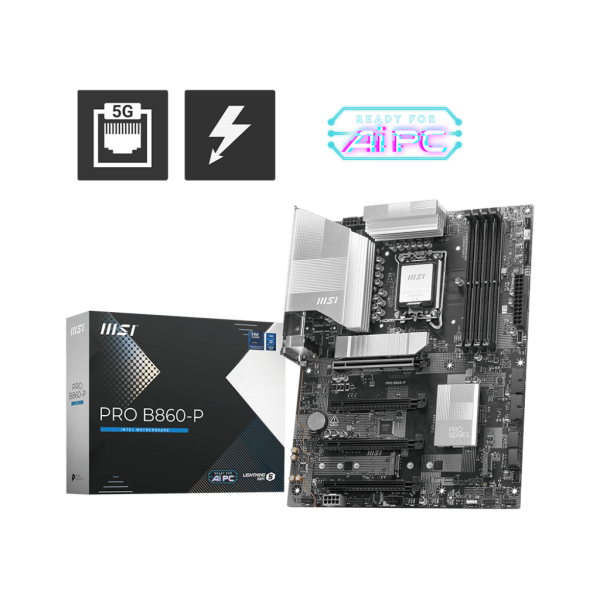

MSI PRO B860-P /LGA1851

1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

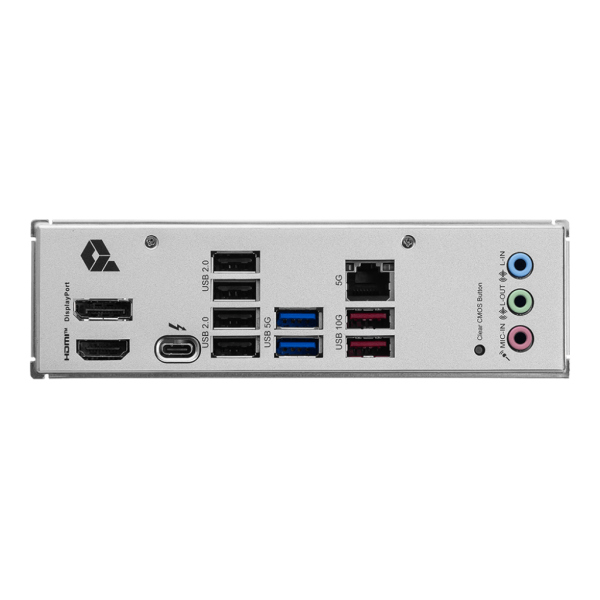

1x Thunderbolt4 ports (Rear); Supports up to 40Gbps transfer rate with Thunderbolt devices; Supports up to 20Gbps transfer rate with USB4 devices; Supports up to 10Gbps transfer rate with USB 3.2 devices; Supports up to 5V/3A,15W power charging; Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; Supports up to 8K display; 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); DisplayPort; USB 2.0; USB 5Gbps Type-A; 5G LAN; Audio Connectors; HDMI™; Thunderbolt™ 4 40Gbps (Type-C); USB 10Gbps Type-A; Clear CMOS Button

1x Thunderbolt5 card connector(JTBT5, support RTD3); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports

поддържа Intel® Core™ Ultra Processors (Series 2); LGA 1851

MSI

4x PCI-E x16 слот; PCI_E1 Gen PCIe 5.0 поддържа До x16 (From CPU); PCI_E2 Gen PCIe 4.0 поддържа До x1 (From Chipset); PCI_E3 Gen PCIe 4.0 поддържа До x4 (From Chipset); PCI_E4 Gen PCIe 4.0 поддържа До x1 (From Chipset)

3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices; 4x SATA 6G; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

PCIe 4.0

Дънна платка

4x EZ Debug LED
