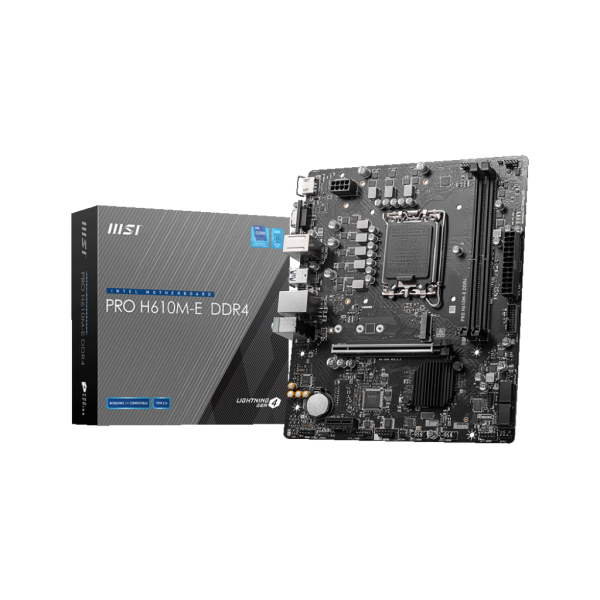

MSI PRO H610M-E DDR4 /LGA1700
60.95€ (119.21лв)
В наличност
MSI H610 2xDDR4 4xSATA3 HDMI VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1... →
Характеристики
Видео изходи
1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
Входове/изходи

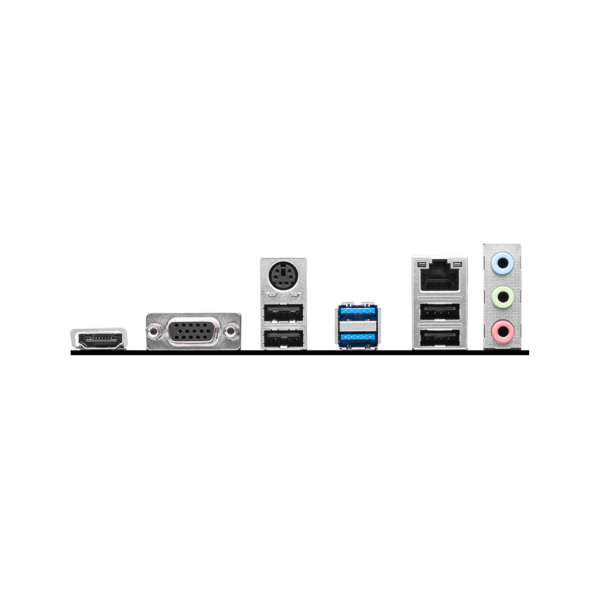

HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0
Дисплей, инчове
9.3, 7.9
Конектори
4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper
Поддържани процесори
поддържа 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1; Processor socket LGA1700
Слотове за разширение
1x PCIe x16 слот (From CPU); поддържа До PCIe 4.0 x16; 1x PCIe x1 слот (From H610 chipset); поддържа PCIe 3.0 x1
Твърд диск, интерфейс
PCIe 4.0, SATA, PCIe 3.0
Тип продукт
Дънна платка
Форм-фактор
M-ATX форм-фактор; 9.3 in. x 7.9 in. (23.6 см x 20 см)
Чипсет
Intel® H610 Chipset; h610
MSI H610 2xDDR4 4xSATA3 HDMI VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
| Характеристики | |
| Видео изходи | 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2 |
| Входове/изходи | HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0 |
| Дисплей, инчове | 9.3, 7.9 |
| Конектори | 4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper |
| Поддържани процесори | поддържа 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1; Processor socket LGA1700 |
| Слотове за разширение | 1x PCIe x16 слот (From CPU); поддържа До PCIe 4.0 x16; 1x PCIe x1 слот (From H610 chipset); поддържа PCIe 3.0 x1 |
| Твърд диск, интерфейс | PCIe 4.0, SATA, PCIe 3.0 |
| Тип продукт | Дънна платка |
| Форм-фактор | M-ATX форм-фактор; 9.3 in. x 7.9 in. (23.6 см x 20 см) |
| Чипсет | Intel® H610 Chipset; h610 |
| Памет, тип | DDR4 |
| Мрежа | 1x Realtek® RTL8111H 1Gbps LAN controller |
| Аудио | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
| Гаранция | 36 м. |
НАЛИЧНОСТ: Външен доставчик
📦 Продуктът не е в локален склад, а се намира при външен партньор или доставчик. Това може да има няколко последствия:
⏱️ По-дълъг срок за доставка – често се изисква допълнително време за получаване и препращане.
✅ Продуктът може да бъде поръчан, но не е наличен за моментално получаване в магазина .
🔹 Наш сътрудник ще се свърже с Вас, когато продуктът бъде наличен за взимане от магазина или готов за доставка.
