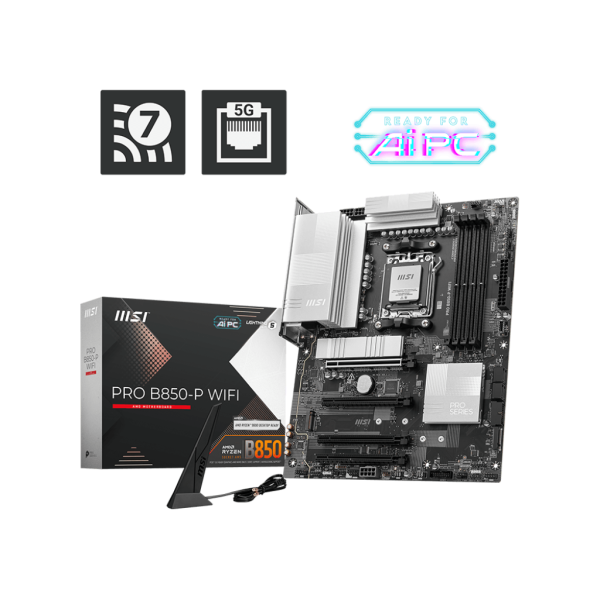

MSI PRO B850-P WIFI /AM5

5.8 Gbps

802.11 a

2.4 GHz, 5 GHz, 6 GHz

1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz; USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

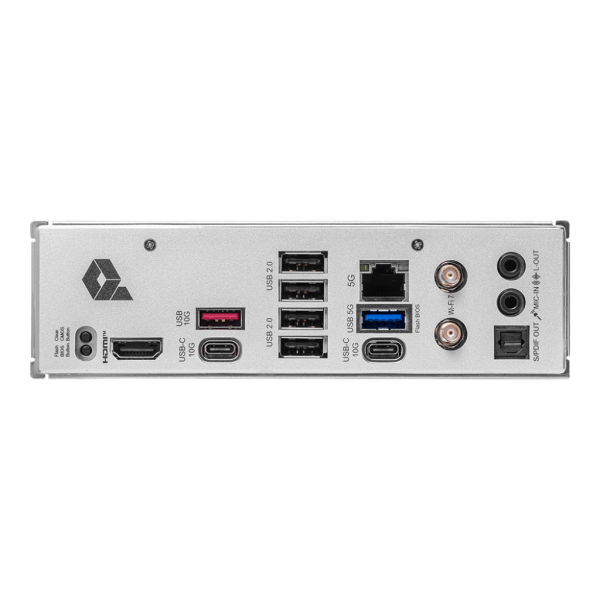

4x USB 2.0 (Rear); 4x USB 2.0 (Front); 1x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear)

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports; *Please refer to the manual for M.2 SSD heatsink restrictions.

поддържа AMD Ryzen™ 9000/ 8000/ 7000 Series десктоп процесори; Socket AM5

MSI

4x PCI-E x16 слот; PCI_E1 Gen PCIe 5.0 поддържа До x16 (From CPU); PCI_E2 Gen PCIe 3.0 поддържа До x1 (From Chipset); PCI_E3 Gen PCIe 4.0 поддържа До x4 (From Chipset); PCI_E4 Gen PCIe 3.0 поддържа До x1 (From Chipset); PCI_E1 слот; поддържа PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); поддържа PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); поддържа PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor); * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 слот will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 слот.

3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M2_2 slot; Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors); Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors); Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors); Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
