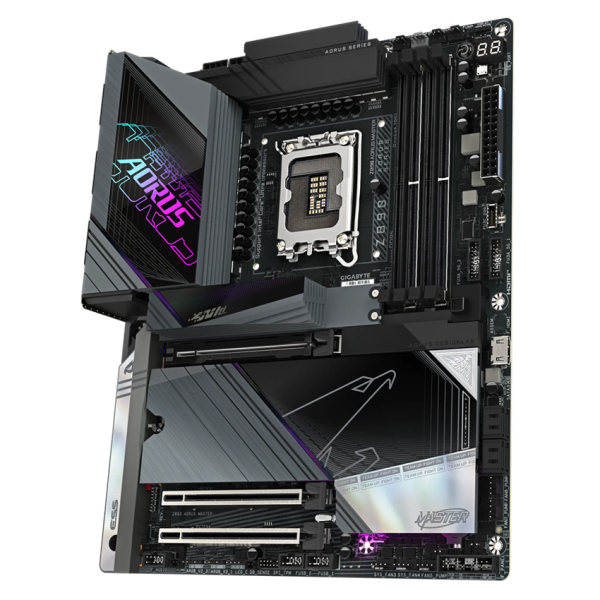

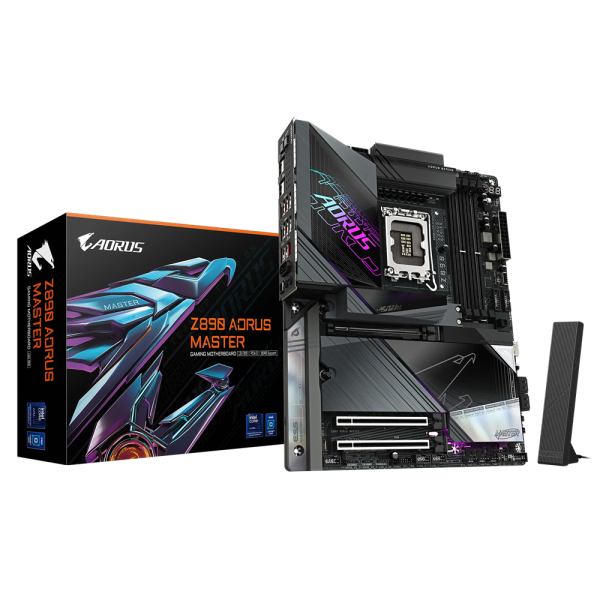

GB Z890 AORUS MASTER

1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

2.5 Gbps, 100 Mbps

802.11a

2.4 GHz, 5 GHz, 6 GHz

Integrated Graphics Processor-Intel® HD Graphics support; - 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs; When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).; When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).; * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.); * Support for DisplayPort 2.1 version and HDCP 2.3; - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; * Support for HDMI 1.4 version.; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time

Intel hd Graphics

CPU; - 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel; *Support up to 40Gbps with Thunderbolt devices; *Support up to 20Gbps with USB4 devices; *Support up to 10Gbps with USB 3.2 devices; Chipset; - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; Chipset+USB 3.2 Gen 2x2 Hub; - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header; Chipset+2 USB 3.2 Gen 1 Hubs; - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers); Chipset+2 USB 2.0 Hubs; - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

iTE® I/O Controller Chip; 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header4 x system fan headers; 4 x system fan/water cooling pump headers; 4 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 5 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x HDMI port (Note); 1 x power button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; 2 x temperature sensor headers; Voltage Measurement Points; (Note) Actual support may vary by CPU; Back Panel Connectors: 1 x Q-Flash Plus button; 1 x Clear CMOS button; 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports); 6 x USB 3.2 Gen 2 Type-A ports (red); 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 por

двуканален

LGA1851 socket: поддържа for Intel® Core™ Ultra Processors; L3 cache varies with CPU; * Please refer до "CPU поддържа List" for more information.
