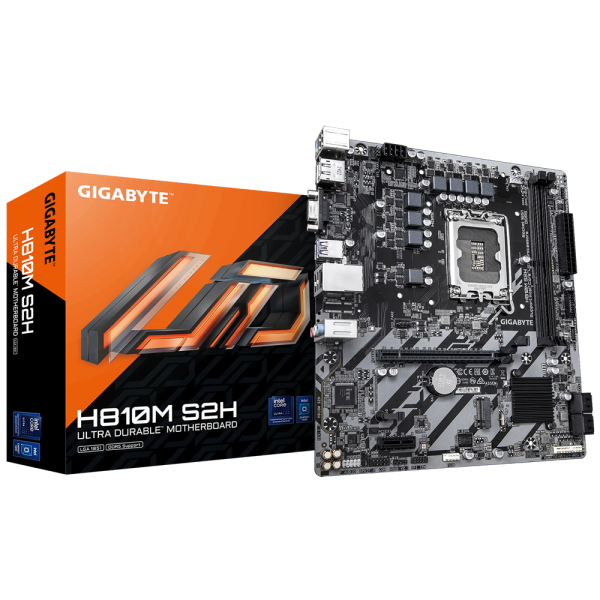

GB H810M S2H
101.32€ (198.16лв)
В наличност
GB H810 2xDDR5 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1... →
Характеристики
BIOS
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi скорост
100 Mbps, 10 Mbps
Видео изходи
Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz; * Support for DisplayPort 2.1 version.; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time
Видео карта, серия
Intel hd Graphics
Входове/изходи
iTE® I/O Controller Chip
Конектори
1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable RGB Gen2 LED strip headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 1 x DisplayPort (Note); 1 x D-Sub port; 1 x USB 3.2 Gen 1 port; 5 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Памет, кит
двуканален
Поддържани процесори
LGA1851 socket: поддържа for Intel® Core™ Ultra Processors
Производител
GIGABYTE
Слотове за разширение
CPU:; - 1 x PCI Express x16 слот, supporting PCIe 4.0 and running at x16 (PCIEX16); * The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD.; Chipset:; - 1 x PCI Express x1 слот, supporting PCIe 3.0 and running at x1 (PCIEX1)
GB H810 2xDDR5 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
| Характеристики | |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| WiFi скорост | 100 Mbps, 10 Mbps |
| Видео изходи | Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz; * Support for DisplayPort 2.1 version.; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time |
| Видео карта, серия | Intel hd Graphics |
| Входове/изходи | iTE® I/O Controller Chip |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable RGB Gen2 LED strip headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 1 x DisplayPort (Note); 1 x D-Sub port; 1 x USB 3.2 Gen 1 port; 5 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks |
| Памет, кит | двуканален |
| Поддържани процесори | LGA1851 socket: поддържа for Intel® Core™ Ultra Processors |
| Производител | GIGABYTE |
| Слотове за разширение | CPU:; - 1 x PCI Express x16 слот, supporting PCIe 4.0 and running at x16 (PCIEX16); * The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD.; Chipset:; - 1 x PCI Express x1 слот, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Съхранение | Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support); - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Твърд диск, интерфейс | PCIe 4.0 |
| Тип продукт | Дънна платка |
| Функции | Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Smart Backup |
| Форм-фактор | Micro ATX форм-фактор; 24.4 см x 21.5 см |
| Чипсет | Intel® H810 Express Chipset |
| Памет, тип | DDR5 |
| Твърд диск, тип | SSD |
| Операционна система | Support for Windows 11 64-bit; Support for Windows 10 64-bit; Norton® Internet Security (OEM version); LAN bandwidth management software; windows 11, windows 10 |
| Мрежа | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| USB | Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header; - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header); Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel |
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out |
| Гаранция | 36 м. |
