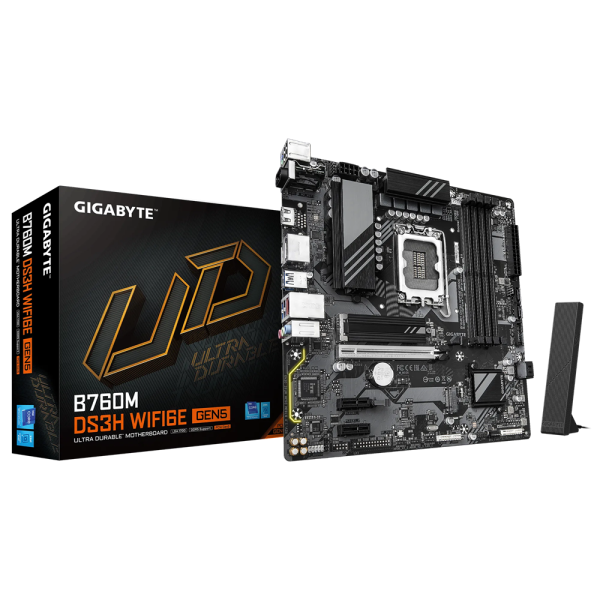

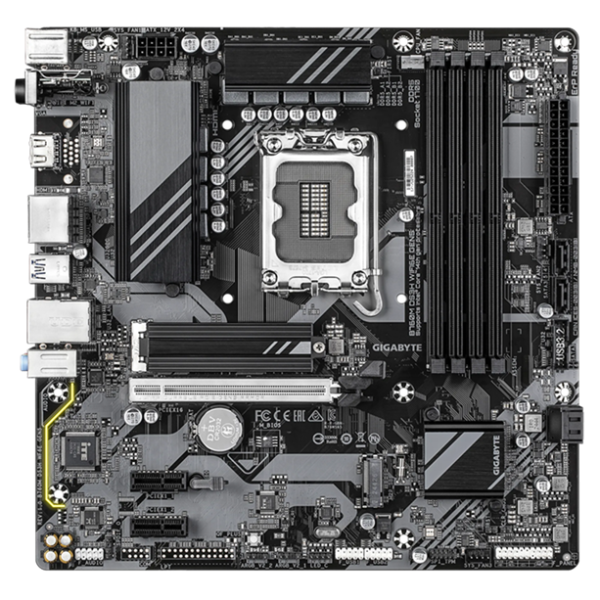

GB B760M DS3H WF6E GEN5
145.63€ (284.83лв)
В наличност
GB B760 4xDDR5 4xSATA3 RAID HDMI 2DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1 WiFi... →
Характеристики
BIOS
1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi скорост
2.5 Gbps, 100 Mbps
WiFi стандарт
WiFi a
WiFi честота
2.4 GHz, 5 GHz, 6 GHz
Видео изходи
Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version.
Видео карта, серия
Intel hd Graphics
Входове/изходи
iTE® I/O Controller Chip
Конектори
1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x S/PDIF Out header; 1 x Q-Flash Plus button1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 2 x antenna connectors (2T2R); 1 x HDMI port (Note); 2 x DisplayPorts (Note); 3 x USB 3.2 Gen 1 ports; 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x RJ-45 port; 3 x audio jacks
Памет, кит
двуканален
Поддържани процесори
LGA1700 socket: поддържа for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU
GB B760 4xDDR5 4xSATA3 RAID HDMI 2DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1 WiFi
| Характеристики | |
| BIOS | 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| WiFi скорост | 2.5 Gbps, 100 Mbps |
| WiFi стандарт | WiFi a |
| WiFi честота | 2.4 GHz, 5 GHz, 6 GHz |
| Видео изходи | Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version. |
| Видео карта, серия | Intel hd Graphics |
| Входове/изходи | iTE® I/O Controller Chip |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x S/PDIF Out header; 1 x Q-Flash Plus button1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 2 x antenna connectors (2T2R); 1 x HDMI port (Note); 2 x DisplayPorts (Note); 3 x USB 3.2 Gen 1 ports; 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x RJ-45 port; 3 x audio jacks |
| Памет, кит | двуканален |
| Поддържани процесори | LGA1700 socket: поддържа for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU |
| Производител | GIGABYTE |
| Слотове за разширение | CPU:; - 1 x PCI Express x16 слот, supporting PCIe 5.0 and running at x16; * The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD.; Chipset:; - 2 x PCI Express x1 слотове, supporting PCIe 3.0 and running at x1 |
| Съхранение | CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Твърд диск, интерфейс | PCIe 4.0 |
| Тип продукт | Дънна платка |
| Функции | Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup |
| Форм-фактор | Micro ATX форм-фактор; 24.4 см x 24.4 см |
| Процесор, серия | Intel Core i9, Intel Core i5 |
| Чипсет | Intel® B760 Express Chipset; b760 |
| Памет, тип | DDR5 |
| Твърд диск, тип | SSD |
| Операционна система | Support for Windows 11 64-bit; Support for Windows 10 64-bit; windows 11, windows 10 |
| Мрежа | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bluetooth | Bluetooth 5.3 |
| USB | Chipset:; - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); - 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |
| Гаранция | 36 м. |
