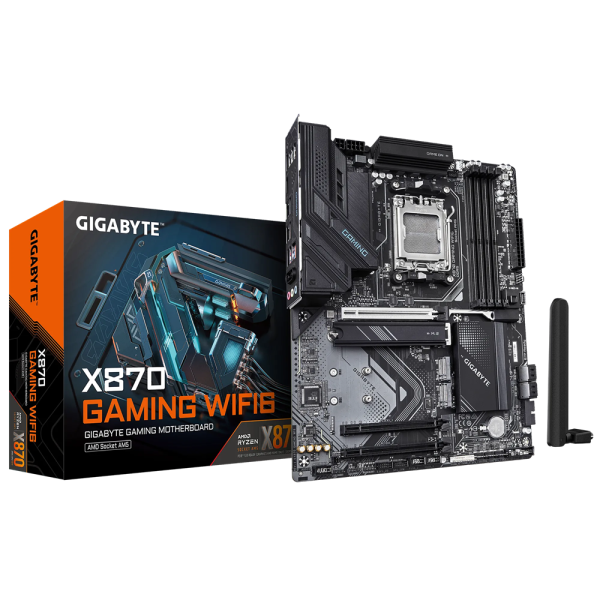

GB X870 GAMING WF6
209.37€ (409.49лв)
В наличност
GB X870 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 3xPCIEx16 WiFi... →
Характеристики
BIOS
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi скорост
2.5 Gbps, 100 Mbps
WiFi стандарт
WiFi a
WiFi честота
2.4 GHz, 5 GHz
Видео изходи
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller; - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * Support for DisplayPort 1.4 version and HDR.; Integrated Graphics Processor with AMD Radeon™ Graphics support; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support native HDMI 2.1 TMDS compatible ports.; (Graphics specifications may vary depending on CPU support.)
Видео карта, серия
Radeon Graphics
Входове/изходи
iTE® I/O Controller Chip
Конектори

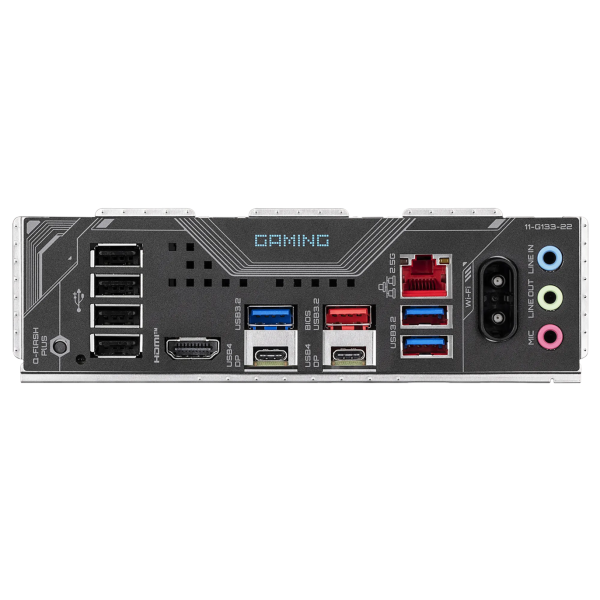

Internal I/O Connectors; -1 x 24-pin ATX main power connector; -1 x 8-pin ATX 12V power connector; -1 x 4-pin ATX 12V power connector; -1 x CPU fan header; -1 x CPU fan/water cooling pump header; -4 x system fan headers; -3 x addressable RGB Gen2 LED strip headers; -1 x RGB LED strip header; -4 x SATA 6Gb/s connectors; -3 x M.2 Socket 3 connectors; -1 x front panel header; -1 x front panel audio header; -1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; -1 x USB 3.2 Gen 1 header; -4 x USB 2.0/1.1 headers; -1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); -1 x reset jumper; -1 x Clear CMOS jumper; Back Panel Connectors; -1 x Q-Flash Plus button; -2 x SMA antenna connectors (2T2R); -1 x HDMI port (Note); -2 x USB4® USB Type-C® ports (DisplayPort (Note)); -1 x USB 3.2 Gen 2 Type-A port (red); -3 x USB 3.2 Gen 1 ports; -4 x USB 2.0/1.1 ports; -1 x RJ-45 port; -3 x audio jacks; (Note) Actual support may vary by CPU.
Памет, кит
двуканален
Поддържани процесори
AMD Socket AM5, поддържа for; -AMD Ryzen™ 9000 Series Processors/; -AMD Ryzen™ 8000 Series Processors/; -AMD Ryzen™ 7000 Series Processors
GB X870 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 3xPCIEx16 WiFi
| Характеристики | |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| WiFi скорост | 2.5 Gbps, 100 Mbps |
| WiFi стандарт | WiFi a |
| WiFi честота | 2.4 GHz, 5 GHz |
| Видео изходи | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller; - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * Support for DisplayPort 1.4 version and HDR.; Integrated Graphics Processor with AMD Radeon™ Graphics support; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support native HDMI 2.1 TMDS compatible ports.; (Graphics specifications may vary depending on CPU support.) |
| Видео карта, серия | Radeon Graphics |
| Входове/изходи | iTE® I/O Controller Chip |
| Конектори | Internal I/O Connectors; -1 x 24-pin ATX main power connector; -1 x 8-pin ATX 12V power connector; -1 x 4-pin ATX 12V power connector; -1 x CPU fan header; -1 x CPU fan/water cooling pump header; -4 x system fan headers; -3 x addressable RGB Gen2 LED strip headers; -1 x RGB LED strip header; -4 x SATA 6Gb/s connectors; -3 x M.2 Socket 3 connectors; -1 x front panel header; -1 x front panel audio header; -1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; -1 x USB 3.2 Gen 1 header; -4 x USB 2.0/1.1 headers; -1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); -1 x reset jumper; -1 x Clear CMOS jumper; Back Panel Connectors; -1 x Q-Flash Plus button; -2 x SMA antenna connectors (2T2R); -1 x HDMI port (Note); -2 x USB4® USB Type-C® ports (DisplayPort (Note)); -1 x USB 3.2 Gen 2 Type-A port (red); -3 x USB 3.2 Gen 1 ports; -4 x USB 2.0/1.1 ports; -1 x RJ-45 port; -3 x audio jacks; (Note) Actual support may vary by CPU. |
| Памет, кит | двуканален |
| Поддържани процесори | AMD Socket AM5, поддържа for; -AMD Ryzen™ 9000 Series Processors/; -AMD Ryzen™ 8000 Series Processors/; -AMD Ryzen™ 7000 Series Processors |
| Производител | GIGABYTE |
| Слотове за разширение | 1 x PCI Express x16 слот (PCIEX16), integrated in the CPU; -AMD Ryzen™ 9000/7000 Series Processors поддържа PCIe 5.0 x16 mode; -AMD Ryzen™ 8000 Series-Phoenix 1 Processors поддържа PCIe 4.0 x8 mode; -AMD Ryzen™ 8000 Series-Phoenix 2 Processors поддържа PCIe 4.0 x4 mode; * The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD. If only one graphics card is до be installed, be sure до install it in the PCIEX16 слот.; Chipset; - 2 x PCI Express x16 слотове, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Съхранение | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs; -AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; -AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; -AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs; * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Твърд диск, интерфейс | NVMe |
| Тип продукт | Дънна платка |
| Функции | Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup |
| Форм-фактор | ATX форм-фактор; 30.5 см x 24.4 см |
| Процесор, серия | AMD Ryzen 9, AMD Ryzen 7 |
| Чипсет | AMD X870 |
| Памет, тип | DDR5 |
| Твърд диск, тип | SSD |
| Операционна система | Support for Windows 11 64-bit; Support for Windows 10 64-bit; windows 11, windows 10 |
| Мрежа | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bluetooth | Bluetooth 5.3 |
| Интерфейс | CPU+ASMedia USB4® controller; - 2 x USB4® USB Type-C® портове on the back panel CPU; - 1 x USB 3.2 Gen 2 Type-A порт (red) on the back panel; - 1 x USB 3.2 Gen 1 порт on the back panel Chipset+2 USB 2.0 Hubs; - 8 x USB 2.0/1.1 портове (4 портове on the back panel, 4 портове available through the internal USB конектори); Chipset; - 1 x USB Type-C® порт with USB 3.2 Gen 2x2 поддържа, available through the internal USB конектор; - 4 x USB 3.2 Gen 1 портове (2 портове on the back panel, 2 портове available through the internal USB конектор); - 4 x USB 2.0/1.1 портове available through the internal USB конектори |
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Гаранция | 36 м. |
