ASROCK B760M STEEL LEGEND WIFI
159.62€ (312.19лв)
В наличност
ASROCK B760 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 2xPCIEx16 WiFi... →
Характеристики
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Видео изходи
- Intel® Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Входове/изходи

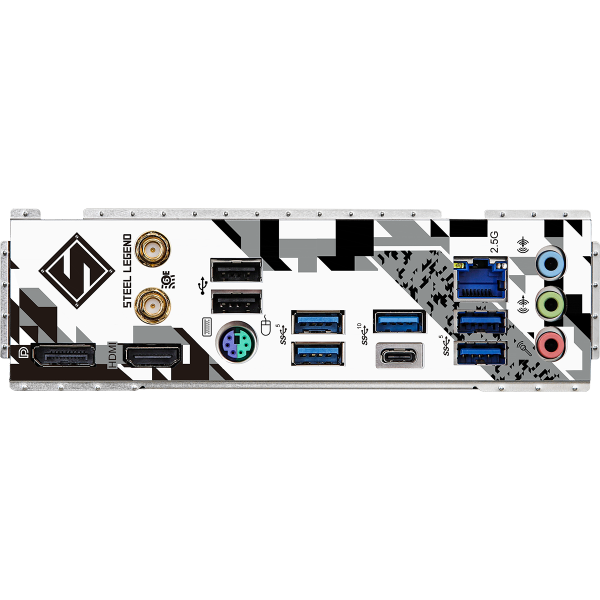

- 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 4 x USB 3.2 Gen1 Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Конектори
- 1 x eDP Signal Connector; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Памет, кит
двуканален
Поддържани процесори
- поддържа 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700); - поддържа Intel® Hybrid Technology; - поддържа Intel® Turbo Boost Max 3.0 Technology; - поддържа Intel® Thermal Velocity Boost (TVB); - поддържа Intel® Adaptive Boost Technology (ABT)
Слотове за разширение
CPU: - 1 x PCIe 5.0 x16 слот (PCIE1), поддържа x16 mode*; Chipset: - 1 x PCIe 4.0 x1 слот (PCIE2)*; - 1 x M.2 Socket (Key E), поддържа type 2230 WiFi/BT PCIe WiFi модул and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - 15μ Gold Contact in VGA PCIe слот (PCIE1)
Съхранение
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
Твърд диск, интерфейс
SATA
Тип продукт
Дънна платка
ASROCK B760 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 2xPCIEx16 WiFi
| Характеристики | |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Видео изходи | - Intel® Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Входове/изходи | - 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 4 x USB 3.2 Gen1 Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Конектори | - 1 x eDP Signal Connector; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Памет, кит | двуканален |
| Поддържани процесори | - поддържа 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700); - поддържа Intel® Hybrid Technology; - поддържа Intel® Turbo Boost Max 3.0 Technology; - поддържа Intel® Thermal Velocity Boost (TVB); - поддържа Intel® Adaptive Boost Technology (ABT) |
| Слотове за разширение | CPU: - 1 x PCIe 5.0 x16 слот (PCIE1), поддържа x16 mode*; Chipset: - 1 x PCIe 4.0 x1 слот (PCIE2)*; - 1 x M.2 Socket (Key E), поддържа type 2230 WiFi/BT PCIe WiFi модул and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - 15μ Gold Contact in VGA PCIe слот (PCIE1) |
| Съхранение | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors |
| Твърд диск, интерфейс | SATA |
| Тип продукт | Дънна платка |
| Форм-фактор | - Micro ATX форм-фактор: 9.6-in x 9.6-in, 24.4 см x 24.4 см; - 2oz Copper PCB |
| Чипсет | - Intel® B760; b760 |
| Памет, тип | DDR5 |
| Операционна система | - Microsoft® Windows® 10 64-bit / 11 64-bit; windows 10 |
| Мрежа | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control |
| Аудио | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio |
| Гаранция | 36 м. |
