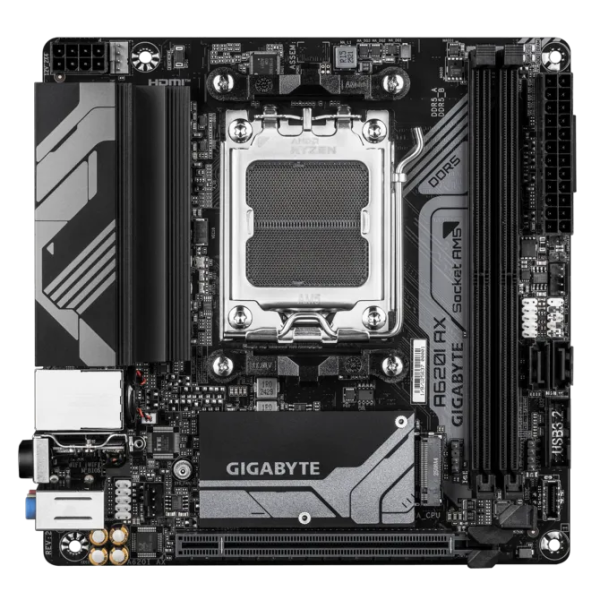

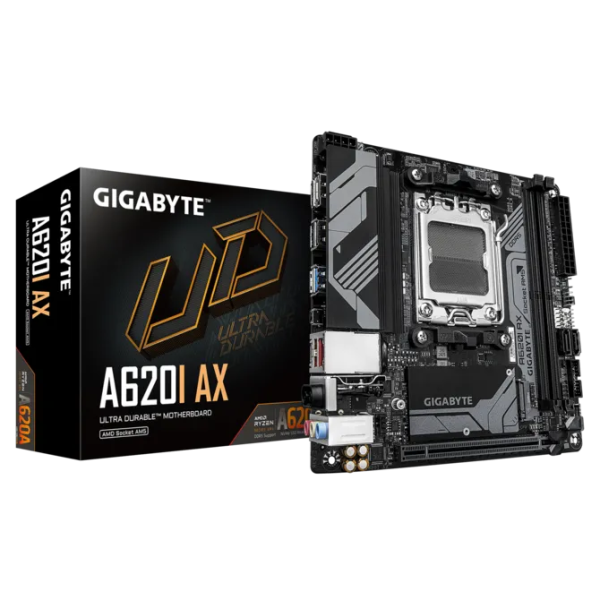

GB A620I AX / AM5
138.37€ (270.63лв)
В наличност
... →
Характеристики
BIOS
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi скорост
2.4 Gbps, 2.5 Gbps, 100 Mbps
WiFi стандарт
WiFi a
WiFi честота
2.4 GHz, 5 GHz, 6 GHz
Видео изходи
Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.
Видео карта, серия
Radeon Graphics
Входове/изходи
iTE® I/O Controller Chip
Конектори
1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable RGB Gen2 LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x reset jumper1 x Clear CMOS jumper; 1 x chassis intrusion header; Back Panel Connectors; 1 x DisplayPort (Note); 1 x HDMI port (Note); 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 2 Type-A port (red); 1 x USB 3.2 Gen 1 port; 3 x USB 2.0/1.1 ports; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x antenna connectors (2T2R); 3 x audio jacks
Памет, кит
двуканален
Поддържани процесори
AMD Socket AM5, поддържа for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
| Характеристики | |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| WiFi скорост | 2.4 Gbps, 2.5 Gbps, 100 Mbps |
| WiFi стандарт | WiFi a |
| WiFi честота | 2.4 GHz, 5 GHz, 6 GHz |
| Видео изходи | Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports. |
| Видео карта, серия | Radeon Graphics |
| Входове/изходи | iTE® I/O Controller Chip |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable RGB Gen2 LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x reset jumper1 x Clear CMOS jumper; 1 x chassis intrusion header; Back Panel Connectors; 1 x DisplayPort (Note); 1 x HDMI port (Note); 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 2 Type-A port (red); 1 x USB 3.2 Gen 1 port; 3 x USB 2.0/1.1 ports; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x antenna connectors (2T2R); 3 x audio jacks |
| Памет, кит | двуканален |
| Поддържани процесори | AMD Socket AM5, поддържа for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Производител | GIGABYTE |
| Слотове за разширение | 1 x PCI Express x16 слот, integrated in the CPU:; - AMD Ryzen™ 9000/7000 Series Processors поддържа PCIe 4.0 x16 mode; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors поддържа PCIe 4.0 x8 mode; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors поддържа PCIe 4.0 x4 mode; * The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD |
| Съхранение | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:; - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devices; RAID 0 and RAID 1 support for SATA storage devices |
| Твърд диск, интерфейс | NVMe |
| Тип продукт | Дънна платка |
| Функции | Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-FlashSupport for Q-Flash Plus; Support for Smart Backup |
| Форм-фактор | Mini-ITX форм-фактор; 17.0 см x 17.0 см |
| Процесор, серия | AMD Ryzen 9, AMD Ryzen 7 |
| Чипсет | AMD A620A |
| Памет, тип | DDR5 |
| Твърд диск, тип | SSD |
| Операционна система | Support for Windows 11 64-bit; Support for Windows 10 64-bit; windows 11, windows 10 |
| Мрежа | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bluetooth | Bluetooth 5.4 |
| USB | CPU:; - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; - 1 x USB 2.0/1.1 port on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
