ASUS ROG MAXIMUS Z890 HERO
754.58€ (1 475.83лв)
В наличност
ASUS Z890 4xDDR5 4xSATA3 RAID HDMI 6xM2 2xGLAN 2xPCIEx16 WiFi... →
Характеристики
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
WiFi скорост
5.8 Gbps, 23.8 Gbps
WiFi стандарт
802.11be
WiFi честота
2.4 GHz, 5 GHz, 6 GHz
Видео изходи
1 x HDMI™ port**; 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates; ** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.; *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.; **** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.; ***** VGA resolution support depends on processors' or graphic cards' resolution.; ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Входове/изходи

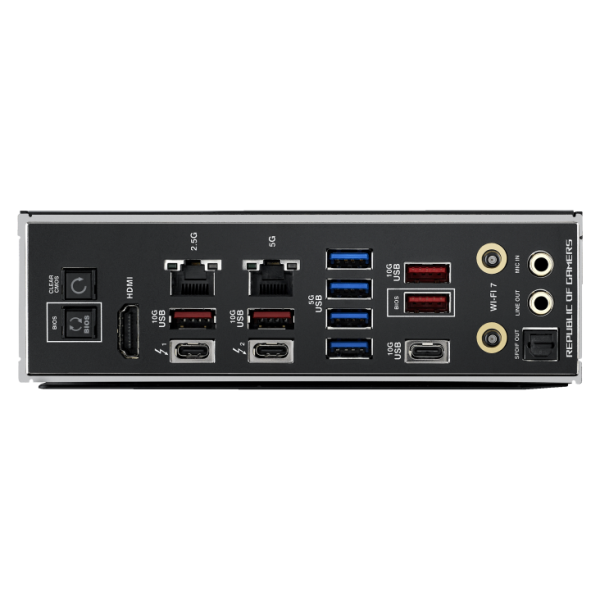

1 x HDMI™ port; 1 x Wi-Fi module; 1 x Intel® 2.5Gb Ethernet port; 1 x Realtek 5Gb Ethernet port; 2 x Gold-plated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button ; 1 x Clear CMOS button; Rear USB (Total 11 ports); 2 x Thunderbolt™ 4 ports (2 x USB Type-C®); 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A); Front USB (Total 10 ports); 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**; 1 x USB 10Gbps connector (supports USB Type-C®); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A; ** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A; 2 x Thunderbolt™ 4 USB Type-C® ports; 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®); 4 x USB 5Gbps ports (4 x Type-A)
Дисплей, инчове
12, 9.6
Конектори
Fan and Cooling Related ; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x W_PUMP+ headers; Power Related ; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; 1 x 8-pin PCIe Power connector; Storage Related ; 6 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; 1 x SlimSAS connector ; USB ; 1 x USB 20Gbps connector (supports USB Type-C® ) ; 1 x USB 10Gps connector (supports USB Type-C® ) ; 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Alteration PCIe mode switch; 1 x FlexKey button ; 1 x Front Panel Audio header (F_AUDIO); 1 x ReTry button; 1 x Start button; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4®) header*; * The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
Памет, кит
двуканален
Поддържани процесори
поддържа Intel® Core™ Ultra Processors (Series 2) , LGA1851*; поддържа Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
ASUS Z890 4xDDR5 4xSATA3 RAID HDMI 6xM2 2xGLAN 2xPCIEx16 WiFi
| Характеристики | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| WiFi скорост | 5.8 Gbps, 23.8 Gbps |
| WiFi стандарт | 802.11be |
| WiFi честота | 2.4 GHz, 5 GHz, 6 GHz |
| Видео изходи | 1 x HDMI™ port**; 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates; ** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.; *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.; **** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.; ***** VGA resolution support depends on processors' or graphic cards' resolution.; ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Входове/изходи | 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Intel® 2.5Gb Ethernet port; 1 x Realtek 5Gb Ethernet port; 2 x Gold-plated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button ; 1 x Clear CMOS button; Rear USB (Total 11 ports); 2 x Thunderbolt™ 4 ports (2 x USB Type-C®); 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A); Front USB (Total 10 ports); 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**; 1 x USB 10Gbps connector (supports USB Type-C®); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A; ** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A; 2 x Thunderbolt™ 4 USB Type-C® ports; 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®); 4 x USB 5Gbps ports (4 x Type-A) |
| Дисплей, инчове | 12, 9.6 |
| Конектори | Fan and Cooling Related ; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x W_PUMP+ headers; Power Related ; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; 1 x 8-pin PCIe Power connector; Storage Related ; 6 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; 1 x SlimSAS connector ; USB ; 1 x USB 20Gbps connector (supports USB Type-C® ) ; 1 x USB 10Gps connector (supports USB Type-C® ) ; 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Alteration PCIe mode switch; 1 x FlexKey button ; 1 x Front Panel Audio header (F_AUDIO); 1 x ReTry button; 1 x Start button; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4®) header*; * The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot. |
| Памет, кит | двуканален |
| Поддържани процесори | поддържа Intel® Core™ Ultra Processors (Series 2) , LGA1851*; поддържа Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Производител | ASUS |
| Слотове за разширение | Intel® Core™ Ultra Processors (Series 2)*; -1 x PCIe 5.0 x16 слот (поддържа x16 or x8/x4/x4 modes)**; Intel® Z890 Chipset; -1 x PCIe 4.0 x16 слот (поддържа x4 mode); -1 x PCIe 4.0 x1 слот**; When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. |
| Съхранение | Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*; Intel® Core™ Ultra Processors (Series 2) *-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); -M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); -M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**; -M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel® Z890 Chipset; -M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) ; -M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); -4 x SATA 6Gb/s ports ; SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. ; * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5; ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. |
| Твърд диск, интерфейс | PCIe 4.0 |
| Тип продукт | Дънна платка |
| Функции | Extreme OC Kit; - FlexKey button; - ReTry button; - Start button; Extreme Engine Digi+; - 10K Black metallic capacitors; - MicroFine alloy choke ; ASUS Q-Design ; - M.2 Q-Latch; - M.2 Q-Release; - M.2 Q-Slide; - Q-Release Slim (with PCIe SafeSlot); - Q-Antenna; - Q-Code; - Q-Connector; - Q-Dashboard; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - Metal backplate; - VRM heatsink design; ASUS EZ DIY; - Backplate; - BIOS FlashBack™ button; - Clear CMOS button; - CPU Socket lever protector; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Addressable Gen 2 header(s); ROG M.2 PowerBoost; Front Panel USB 20Gbps with Quick Charge 4+ Support; - Support: up to 60W fast charging and USB Wattage Watcher*; - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A; - Compatible with PD3.0 and PPS; * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. |
| Форм-фактор | ATX форм-фактор 12 инч x 9.6 инч ( 30.5 см x 24.4 см ) |
| Чипсет | Intel® Z890 Chipset |
| Памет, тип | DDR5 |
| Операционна система | Windows 11 (22H2 & later); windows 11, windows 10 |
| Мрежа | 1 x Intel® 2.5Gb Ethernet; 1 x Realtek 5Gb Ethernet; ASUS LANGuard |
| Bluetooth | Bluetooth 5.4 |
| Аудио | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback on front panel"; Audio Features ; - SupremeFX Shielding Technology; - ESS® ES9219 QUAD DAC; - Gold-plated audio jacks; - Rear optical S/PDIF out port; - Premium audio capacitors; * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Гаранция | 36 м. |
