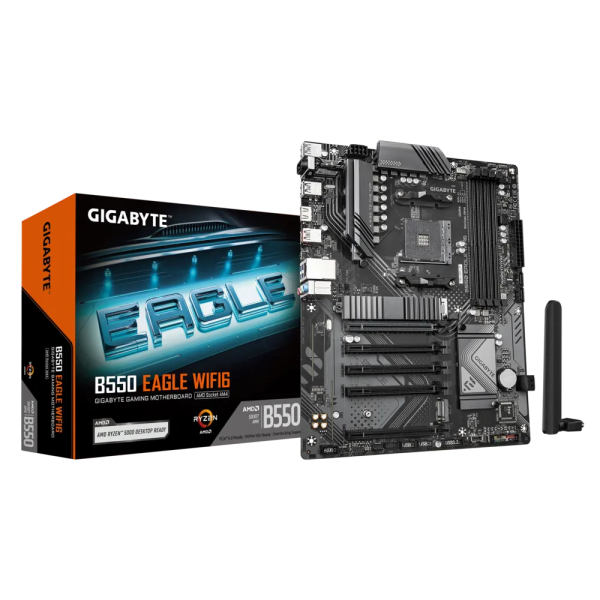

GB B550 EAGLE WIFI6
122.83€ (240.23лв)
В наличност
GB B550 4xDDR4 4xSATA3 RAID HDMI DVI 2xM2 GLAN 5xPCIEx16 WiFi... →
Характеристики
BIOS
1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi скорост
10 Mbps
WiFi стандарт
wifi6, WiFi a
WiFi честота
2.4 GHz, 5 GHz
Видео изходи
Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.; (Graphics specifications may vary depending on CPU support.); Maximum shared memory of 16 GB
Видео карта, серия
Radeon Graphics
Входове/изходи
iTE® I/O Controller Chip
Конектори

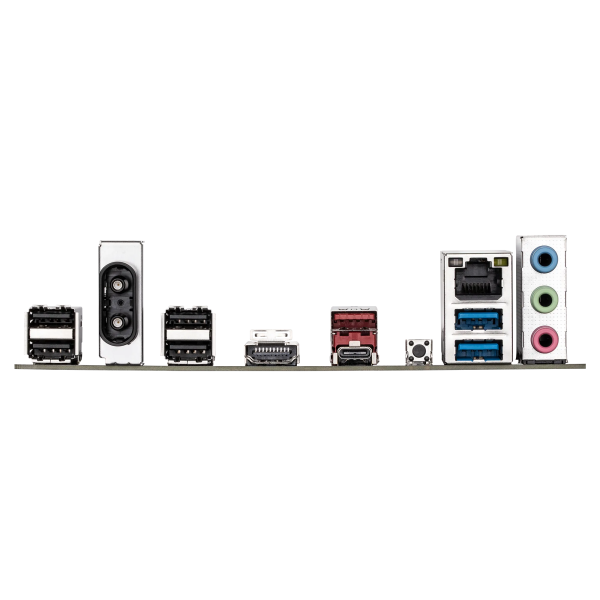

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper; Back Panel Connectors; 4 x USB 2.0/1.1 ports; 2 x antenna connectors (1T1R); 1 x HDMI port (Note); 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red); 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x USB 3.2 Gen 1 ports; 3 x audio jacks
Памет, кит
двуканален
Поддържани процесори
AMD Socket AM4, поддържа for:; AMD Ryzen™ 5000 г-Series Processors/; AMD Ryzen™ 5000 Series Processors/; AMD Ryzen™ 4000 г-Series Processors/; AMD Ryzen™ 3000 г-Series Processors/; AMD Ryzen™ 3000 Series Processors
GB B550 4xDDR4 4xSATA3 RAID HDMI DVI 2xM2 GLAN 5xPCIEx16 WiFi
| Характеристики | |
| BIOS | 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| WiFi скорост | 10 Mbps |
| WiFi стандарт | wifi6, WiFi a |
| WiFi честота | 2.4 GHz, 5 GHz |
| Видео изходи | Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.; (Graphics specifications may vary depending on CPU support.); Maximum shared memory of 16 GB |
| Видео карта, серия | Radeon Graphics |
| Входове/изходи | iTE® I/O Controller Chip |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper; Back Panel Connectors; 4 x USB 2.0/1.1 ports; 2 x antenna connectors (1T1R); 1 x HDMI port (Note); 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red); 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x USB 3.2 Gen 1 ports; 3 x audio jacks |
| Памет, кит | двуканален |
| Поддържани процесори | AMD Socket AM4, поддържа for:; AMD Ryzen™ 5000 г-Series Processors/; AMD Ryzen™ 5000 Series Processors/; AMD Ryzen™ 4000 г-Series Processors/; AMD Ryzen™ 3000 г-Series Processors/; AMD Ryzen™ 3000 Series Processors |
| Производител | GIGABYTE |
| Слотове за разширение | 1 x PCI Express x16 слот (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 5000/3000 Series Processors поддържа PCIe 4.0 x16 mode; - AMD Ryzen™ 5000 г/4000 г/3000 г Series Processors поддържа PCIe 3.0x16 mode; * The PCIEX16 слот can only поддържа a graphics card or an NVMe SSD. If only one graphics card is до be installed, be sure до install it in the PCIEX16 слот.; Chipset:; - 4 x PCI Express x16 слотове, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) |
| Съхранение | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Твърд диск, интерфейс | NVMe |
| Тип продукт | Дънна платка |
| Функции | Support for APP Center; - @BIOS; - EasyTune; - RGB Fusion; - Smart Backup; - System Information Viewer; Support for Q-Flash Plus; Support for Q-Flash |
| Форм-фактор | ATX форм-фактор; 30.5 см x 24.4 см |
| Процесор, серия | AMD Ryzen 5, AMD Ryzen 3 |
| Чипсет | AMD B550; b550 |
| Памет, тип | DDR4 |
| Твърд диск, тип | SSD |
| Операционна система | Support for Windows 11 64-bit; Support for Windows 10 64-bit; Norton® Internet Security (OEM version); LAN bandwidth management software; windows 11, windows 10 |
| Мрежа | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Bluetooth | Bluetooth 5.3 |
| USB | CPU:; - AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel; - AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel; - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support; - 2 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 4 x USB 2.0/1.1 ports available through the internal USB headers; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel |
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| Гаранция | 36 м. |
