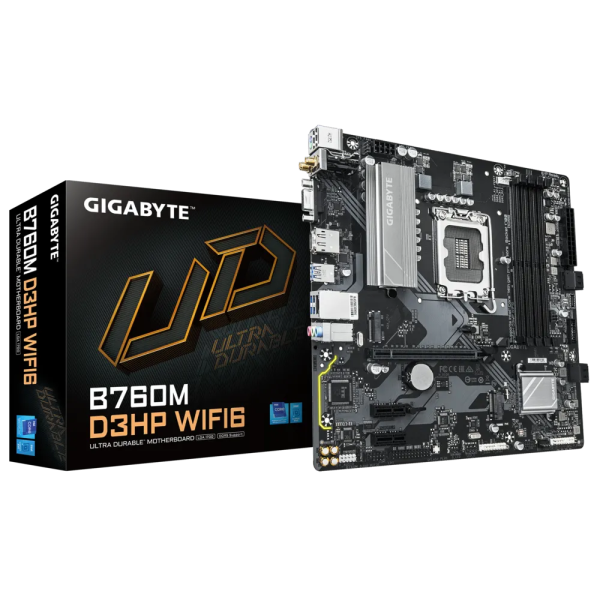

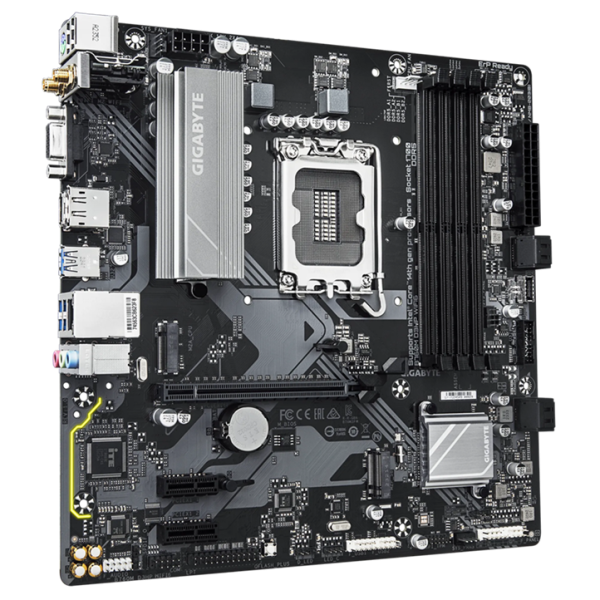

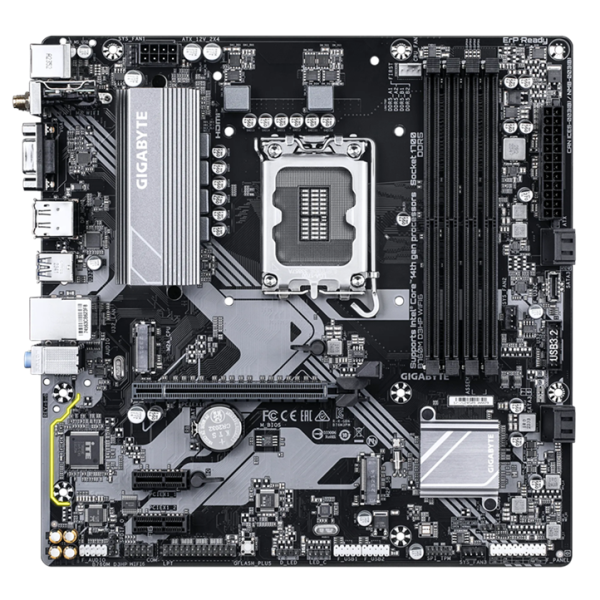

GB B760M D3HP WIFI6
119.35€ (233.43лв)
В наличност
GB B760 4xDDR5 4xSATA3 RAID HDMI 2DP VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1 WiFi... →
Основни параметри
Интерфейси за съхранение
M.2: 1x; SATA 6Gb/s: 4x; RAID 0/1/5/10
USB портове
USB 5Gbps Type-C: 1x; USB 5Gbps: 5x; USB 2.0: 6x
Заден панел I/O
iTE® I/O Controller Chip
Вътрешни конектори

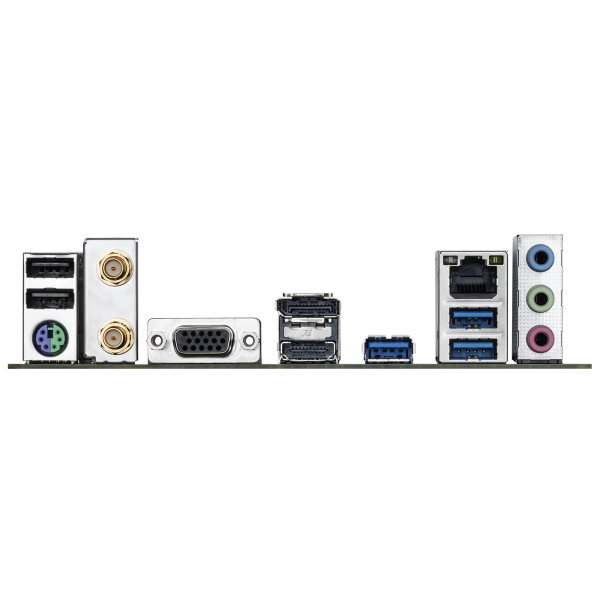

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 3x system fan headers; 1x addressable LED strip header; 1x RGB LED strip header; 2x M.2 Socket 3 connectors; 4x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x USB Type-C® header; with USB 3.2 Gen 1 support; 1x USB 3.2 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only); 1x serial port header; 1x parallel port header; 1x S/PDIF Out header; 1x Q-Flash Plus button; 1x reset jumper; 1x Clear CMOS jumper; Back Panel Connectors; 2x USB 2.0/1.1 ports; 1x PS/2 keyboard/mouse port; 2x SMA antenna connectors (1T1R); 1x D-Sub port*; 1x DisplayPort*; 1x HDMI port*; 3x USB 3.2 Gen 1 ports; 1x RJ-45 port; 3x audio jacks
Поддръжка на вградена графика
HDMI 2.1; DisplayPort 1.2; max 1920x1200@60Hz; max 4096x2160@60Hz; max 4096x2304@60Hz
Характеристики
BIOS
128 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Видео карта
Integrated Graphics Processor-Intel HD Graphics support:;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time
Процесор, серия
Intel B760 Express Chipset
GB B760 4xDDR5 4xSATA3 RAID HDMI 2DP VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1 WiFi
| Основни параметри | |
| Интерфейси за съхранение | M.2: 1x; SATA 6Gb/s: 4x; RAID 0/1/5/10 |
| USB портове | USB 5Gbps Type-C: 1x; USB 5Gbps: 5x; USB 2.0: 6x |
| Заден панел I/O | iTE® I/O Controller Chip |
| Вътрешни конектори | 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 3x system fan headers; 1x addressable LED strip header; 1x RGB LED strip header; 2x M.2 Socket 3 connectors; 4x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x USB Type-C® header; with USB 3.2 Gen 1 support; 1x USB 3.2 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only); 1x serial port header; 1x parallel port header; 1x S/PDIF Out header; 1x Q-Flash Plus button; 1x reset jumper; 1x Clear CMOS jumper; Back Panel Connectors; 2x USB 2.0/1.1 ports; 1x PS/2 keyboard/mouse port; 2x SMA antenna connectors (1T1R); 1x D-Sub port*; 1x DisplayPort*; 1x HDMI port*; 3x USB 3.2 Gen 1 ports; 1x RJ-45 port; 3x audio jacks |
| Поддръжка на вградена графика | HDMI 2.1; DisplayPort 1.2; max 1920x1200@60Hz; max 4096x2160@60Hz; max 4096x2304@60Hz |
| Характеристики | |
| BIOS | 128 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Видео карта | Integrated Graphics Processor-Intel HD Graphics support:;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time |
| Процесор, серия | Intel B760 Express Chipset |
| Чипсет | Intel® B760 Express Chipset |
| Памет, тип | DDR5 |
| Съвместими операционни системи | Windows 11 64-bit; Windows 10 64-bit; Norton® Internet Security (OEM version); LAN bandwidth management software |
| Безжична мрежа | Wi-Fi 6 |
| Bluetooth | Да |
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio; access the audio software for audio settings.; Support for S/PDIF Out |
| Софтуер | Windows 11 |
| Разширителни слотове | 1x PCIe x16; 2x PCIe x1 |
| URL на производителя | https://www.gigabyte.com/Motherboard/B760M-D3HP-WIFI6 |
| Bluetooth версия | 5.3 |
